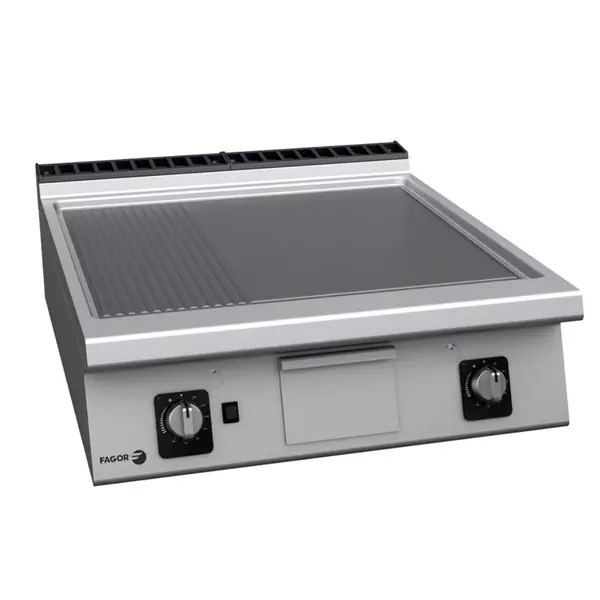

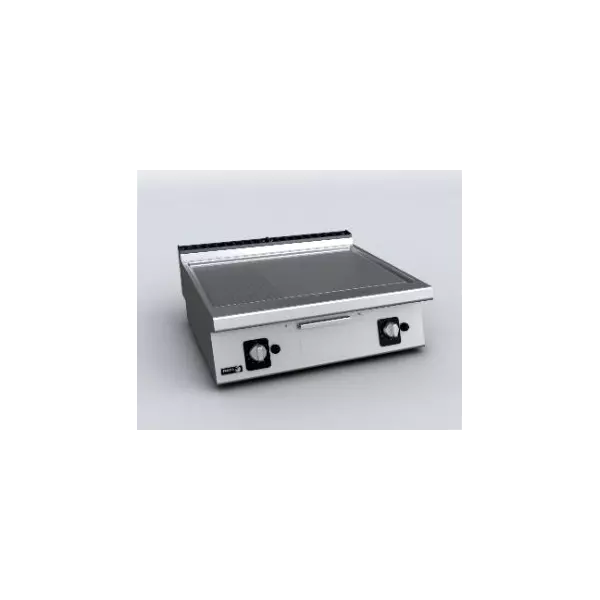

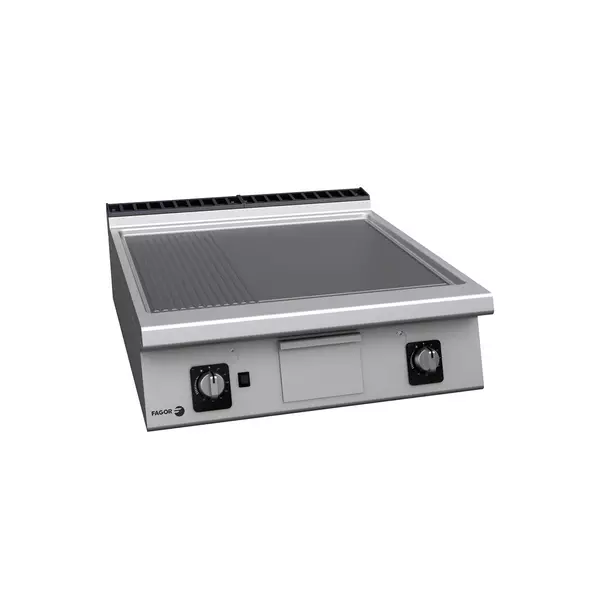

Frying/baking plate with combined surface (2/3 smooth + 1/3 ribbed), whole module. LINE 700. The plate can be electric or gas (LPG/NG), with thermostatic temperature control or with a thermocouple safety valve (only for gas models). Chrome-plated surface for versions with thermostatic surface.
DESCRIPTION:
- Top in AISI-304 stainless steel 1.5 mm thick, with rounded edges allowing easy cleaning.
- Laser cutting and automatic welding to allow perfect lateral fit between the modules with right-angled side finish.
- The plate is integrated into the top, built-in. The tops are welded to the stamped surface.
- Work surface made of mild steel 12 mm thick and dimensions 728x468 mm, with high power and fast reaching the desired temperature.
- Models with smooth, ribbed and mixed surface of the plate (2/3 smooth + 1/3 ribbed).
- Versions with chrome-plated surface, 50 microns thick for the three types of plates.
- Electric models have stainless steel heating elements; Temperature control is carried out by a thermostat between 100 and 300 °C.
- Gas models have highly efficient burners (two independent burners with two branches - two heating zones for the entire module of the models).
- Gas-heated models can be with a reducing gas valve/valve or with thermostatic temperature control (between 100 and 300 °C thermostat with thermocouple).
- Piezoelectronic ignition of the burners. Gas models do not require electricity for installation. Access for manual ignition.
- Fast response and time to restore the temperature of the plate..
- The plate is tilted forward to facilitate the collection of fats and liquids.
- They are equipped with a fat collection hole and a storage tray that has a capacity of up to 2 liters depending on the model.
- Option for easily removable side and rear splash guards.
- High-temperature enameled cast iron smoke exhaust protector.
- Access to components from the front.
- Machines with IPX5 water protection degree.
POSSIBLE OPTIONS:
- 230 1N- Transformation A 230 V single-phase
- 230 III - A 230 V three-phase transformation without neutral
SUPPLIED ACCESSORIES:
Model FT-G710 C L R with chrome finish, included - 19045082 Frying scraper Kore 1st generation
POSSIBLE ACCESSORIES: - 900 STAND - KORE ACCESSORIES - Splash guard (three-piece for easy cleaning). - KORE HIGH CHIMNEY
