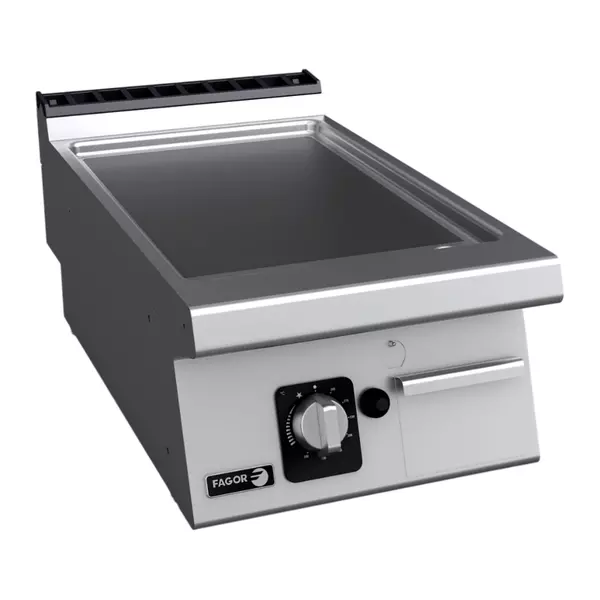

Fry-top with smooth surface - FT-705 L

Възползвайте се от удобството да закупите уреди на изплащане или да финансирате на вноски цялостното оборудване на вашата професионална кухня или перално стопанство. С нашите партньори ще Ви предложим най-добрите условия за изпълнението на вашия проект, без да е необходимо да плащате цялата сума предварително. tbitbi Запитване за лизинг
FT-G705 V L LPG
ElectricGas
Fagor
19101392
Contact us for a price
Need help?02/862 55 66

Frying/baking plate with smooth surface (semi-module) LINE 700. The plate can be electric or gas (LPG/NG), with thermostatic temperature control or with a thermocouple safety valve (only for gas models). Plates with thermostat have a version with a chrome surface.

DESCRIPTION:

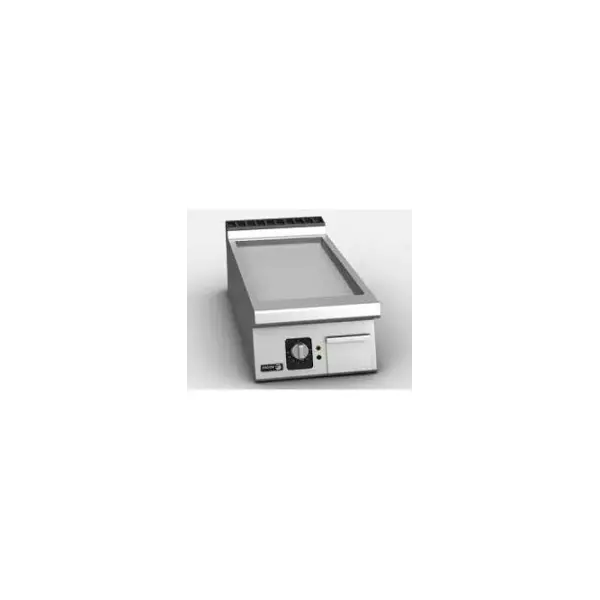

  • Smooth grill: FT-G705 C L and FT-E705 C L - version with chrome-plated surface, 50 microns thick.
  • Electrically heated model - with stainless steel heating elements; thermostatic temperature control, between 100 and 300 °C and one heating zone.
  • AISI-304 stainless steel plate 1.5 mm thick and stamped surface, with rounded edges allowing easy cleaning.
  • Laser cutting and automatic welding to allow perfect lateral fit between the modules with right-angled side finish. Hidden screws.
  • Work surface made of 12 mm thick mild steel and dimensions 328x468 mm, high power and fast achievement of the desired temperature.
  • Fast response and time to recover the plate temperature.
  • The grill plate is integrated into the hob, built-in.
  • The hob is tilted forward to facilitate the collection of fat and liquids.
  • It is equipped with a cooking fat collection hole and a removable storage tray, with a capacity of up to 2 liters depending on the model.
  • Access to the components from the front.

ACCESSORIES SUPPLIED: for the chrome version FT-705 C L - 19045083 Frying scraper of Kore 1 generation

OPTIONAL OPTIONS :

- 230 1N- Transformation A 230 V single-phase

- 230 III - A 230 V three-phase transformation without neutral

OPTIONAL ACCESSORIES : - ACCESSORIES FOR Fry-top KORE - HIGH CHIMNEY KORE - ACCESSORIES KORE - STANDS 700

  CODE Power supply Temperature control by Price
Fry-top with smooth surface - FT-705 L
19101249
LPG Thermostat Contact us for a price
Fry-top with smooth surface - FT-705 L
19101394
LPG Thermostat and chromium hot-plate Contact us for a price
Fry-top with smooth surface - FT-705 L
19101409
NG Min/max valve Contact us for a price
Fry-top with smooth surface - FT-705 L
19101415
NG Thermostat Contact us for a price
Fry-top with smooth surface - FT-705 L
19101395
NG Thermostat and chromium hot-plate Contact us for a price
Fry-top with smooth surface - FT-705 L
19101390
Electricity Thermostat Contact us for a price
Fry-top with smooth surface - FT-705 L
19101116
Electricity Thermostat and chromium hot-plate Contact us for a price
Fry-top with smooth surface - FT-705 L
19101392
LPG Min/max valve Contact us for a price
Model:
FT-G705 V L LPG
Power supply:
  • Electric
  • Gas
Power:
7.5kW
Sizes:
400x730x290 mm
Net weight:
35 kg

FT&Grills

Power supply :
LPG
Temperature control by:
Min/max valve

FT-E705_L (FT-E705_L_19101390.pdf, 1,124 Kb) [Download]

FT-G705_L (1_EN_FT-G705_L_19101249.pdf, 850 Kb) [Download]

FT-E705 V L (1_EN_FT-G705_V_L_19101392.pdf, 1,090 Kb) [Download]
