Fry-top with smooth surface - FT-710 L

Възползвайте се от удобството да закупите уреди на изплащане или да финансирате на вноски цялостното оборудване на вашата професионална кухня или перално стопанство. С нашите партньори ще Ви предложим най-добрите условия за изпълнението на вашия проект, без да е необходимо да плащате цялата сума предварително. tbitbi Запитване за лизинг
FT-G710 V L LPG
ElectricGas
Fagor
19101391
Contact us for a price
Need help?02/862 55 66

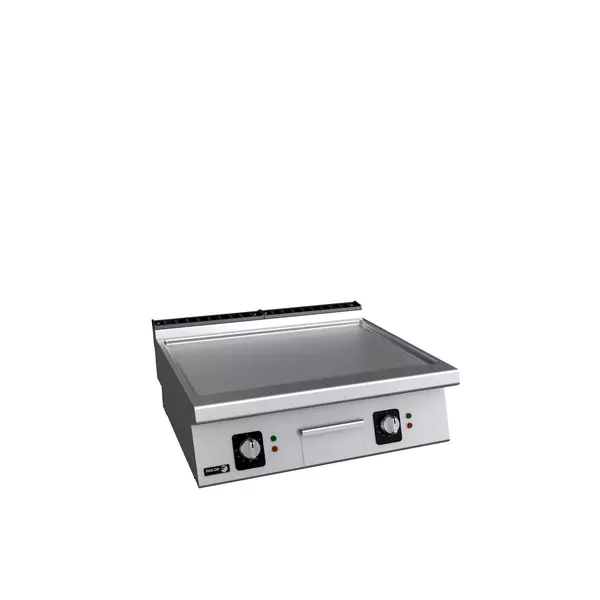

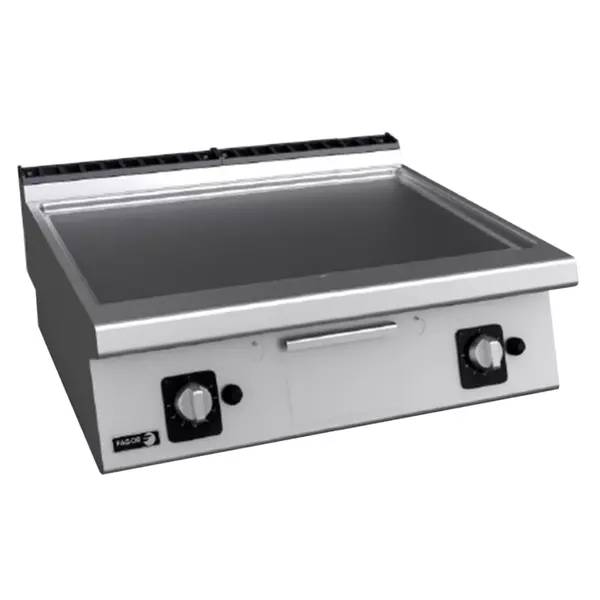

Frying/baking plate with smooth surface (whole module) LINE 700. The plate can be electric or gas (LPG/NG), with thermostatic temperature control or with a thermocouple safety valve (only for gas models). The versions with thermostat can be in the chrome-plated version.

DESCRIPTION:

  • Top in AISI-304 stainless steel 1.5 mm thick, with rounded edges allowing easy cleaning.
  • Laser cutting and automatic welding to allow a perfect lateral fit between the modules with a right-angled side finish.
  • The plate is integrated into the plate, built-in. The plates are welded to the stamped surface.
  • Work surface made of mild steel 12 mm thick and dimensions 728x468 mm, with high power and fast achievement of the desired temperature.
  • Models with smooth, ribbed and mixed surface of the plate (2/3 smooth + 1/3 ribbed).
  • Versions with chrome-plated surface, 50 microns thick.
  • Electric models have stainless steel heating elements; Temperature control is carried out by a thermostat between 100 and 300 °C.
  • Gas models have highly efficient burners (two independent burners with two branches - two heating zones for the entire module of the models).
  • Gas-heated models can be with a reducing gas valve/valve or with thermostatic temperature control (between 100 and 300 °C thermostat with thermocouple).
  • Piezoelectronic ignition of the burners. Gas models do not require electricity for installation. Access for manual ignition.
  • Fast response and time to restore the plate temperature.
  • The plate is tilted forward to facilitate the collection of fats and liquids.
  • They are equipped with a grease collection hole and a grease storage tray, which has a capacity of up to 2 liters depending on the model.
  • Option for easily removable side and rear splash guards.
  • High-temperature enameled cast iron flue protector.
  • Access to components from the front.
  • Machines with IPX5 water protection rating.

SUPPLIED ACCESSORIES:

Models (FT-710 C L) with chrome finish, included - 19045082 Scraper Kore 1
OPTIONAL OPTIONS:

- 230 1N- Transformation A 230 V single-phase

- 230 III - A 230 V three-phase transformation without neutral

OPTIONAL ACCESSORIES: - ACCESSORIES FOR Fry-top KORE - HIGH CHIMNEY KORE - ACCESSORIES KORE - STANDS 700

  CODE Power supply Temperature control by Price
Fry-top with smooth surface - FT-710 L
19101248
LPG Thermostat Contact us for a price
Fry-top with smooth surface - FT-710 L
19101393
LPG Thermostat and chromium hot-plate Contact us for a price
Fry-top with smooth surface - FT-710 L
19101410
NG Min/max valve Contact us for a price
Fry-top with smooth surface - FT-710 L
19101416
NG Thermostat Contact us for a price
Fry-top with smooth surface - FT-710 L
19101401
NG Thermostat and chromium hot-plate Contact us for a price
Fry-top with smooth surface - FT-710 L
19101247
Electricity Thermostat Contact us for a price
Fry-top with smooth surface - FT-710 L
19101422
Electricity Thermostat and chromium hot-plate Contact us for a price
Fry-top with smooth surface - FT-710 L
19101391
LPG Min/max valve Contact us for a price
Model:
FT-G710 V L LPG
Power supply:
  • Electric
  • Gas
Power:
15kW
Sizes:
800x730x290 mm
Net weight:
112 kg

FT&Grills

Power supply :
LPG
Temperature control by:
Min/max valve

FT-E710_L (FT-E710_L_19101247.pdf, 1,137 Kb) [Download]

FT-G710_L (FT-G710_L_19101248.pdf, 927 Kb) [Download]

FT-E710_C_L (FT-E710_C_L_19101422.pdf, 1,139 Kb) [Download]

FT-G710_C_L (FT-G710_C_L_19101393.pdf, 740 Kb) [Download]

FT-G710_V_L (FT-G710_V_L_19101410.pdf, 925 Kb) [Download]
