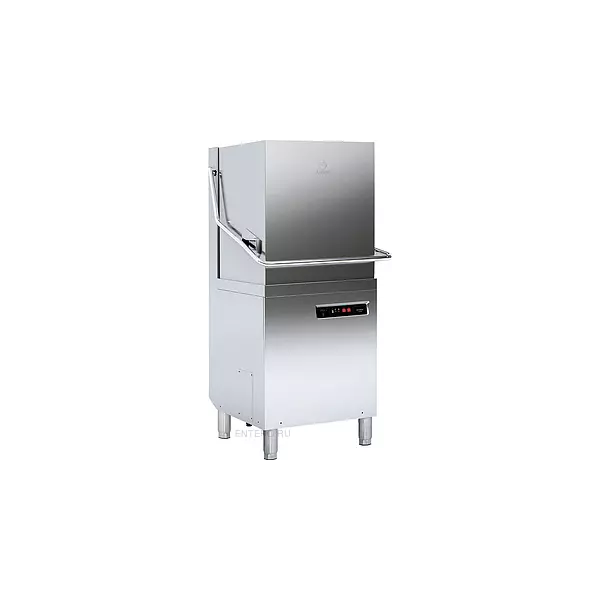

Hood-type dishwasher CO-144

Възползвайте се от удобството да закупите уреди на изплащане или да финансирате на вноски цялостното оборудване на вашата професионална кухня или перално стопанство. С нашите партньори ще Ви предложим най-добрите условия за изпълнението на вашия проект, без да е необходимо да плащате цялата сума предварително. tbitbi Запитване за лизинг
Fagor
COP-144

Professional console dishwasher with electronic control and rinse pump.

DESCRIPTION:

  • Dishwashers with lid - EVO Generation
  • Made of stainless steel.
  • Counterweight lid with handle and spring system.
  • Double rotating system - washing and rinsing arms, top and bottom, made of stainless steel.
  • 440 mm opening (Suitable for GN 1/1 gastronorm trays).
  • 750 W washing pump, providing high water flow.
  • Rounded tank for easy washing and draining.
  • Armored stainless steel heating elements in the washing tank and rinse boiler.
  • Multivoltage: Allows the machine to be connected to a single-phase or three-phase network. (230 1N~/230 3~/400V 3N~).
  • AISI-304 stainless steel filters in the wash tank.
  • Thermostatic temperature control (wash 60°C and rinse 85°C).
  • Thermal stop system that guarantees a rinse temperature of 85°C - the machine does not start before reaching the temperature.
  • Safety stop switch when opening.
  • Safety thermostat.
  • Water consumption per cycle of 2.4 liters.
  • Model for 500 x 500 mm baskets.
  • Model with electronic control and display for temperature, functions and errors.
  • Electronic programmer with maintenance assistance system.
  • Rinse pump that guarantees a perfect hygienic result with a full linear rinse cycle at 85°C. (EFFIRINSE) in compliance with the safety and hygiene specifications of the DIN10512 standard.
  • Return system with air brake type AA according to EN 1717/WRAS.
  • Washing cycles: 55s, 75s, 120s and 600s.
  • Theoretical maximum capacity of 65 baskets/hour (1170 plates/hour).
  • Tank with a volume of 33 liters, with a heating element of 4.5 kW.
  • Boiler with a volume of 9 liters, with a heating element of 9 kW.
  • Alternative or simultaneous heating of tank and boiler.
  • Maximum total power: 9.75 kW (with alternative) or 14.75 kW (simultaneous) heating.
  • IPX4 water protection.
  • Rinse pump - 150 W.

OPTIONAL OPTIONS: - Electrical connection for ships 440V

ACCESSORIES SUPPLIED:

19000484 Glass basket, 500x500x110 mm. 1
19000487 Basket for 16-18 plates 500x500x110 mm. 1
19000792 Basket for 15 utensils 105x105x130 mm. 2

NOTE:

Water connection: It is advisable to introduce sanitary water in the dishwashers, with a temperature of 50 - 60 ºC.

Water pressure: Minimum: 2 bar = 2 kg/cm2 Maximum: 4 bar = 4 kg/cm2

Water softener: All glass / dishwashers should be connected to a treated water supply when the local supply is over 10 HF / 6 HD.

Capacity of boiler:
  • 10л
Capacity of tank:
  • 33л
Clearance:
  • 440мм
Dispenser of detergent:
  • Да
Dispenser of rinse aid:
  • Да
Double isolated door:
  • Не
Draining pump:
  • Да
Productivity:
  • Дакг/ч
Size of basket:
  • 500/500мм
Suitable for GN1/1:
  • Да
Water consumption:
  • 4.20л/цикъл

Basic model (COP-144_19073920.pdf, 855 Kb) [Download]

Drainage pump (COP-144_B_19075288.pdf, 857 Kb) [Download]

Drainage pump and detergent dozer (COP-144_B_DD_19075290.pdf, 856 Kb) [Download]

Peristaltic detergent dozer (COP-144_DD_19075289.pdf, 857 Kb) [Download]

Heat recovery system (COP-144_HRS_19075044.pdf, 1,743 Kb) [Download]

Heat recovery system, drainage pump + detergent dozer (COP-144_HRS_B_DD_19075291.pdf, 1,744 Kb) [Download]
