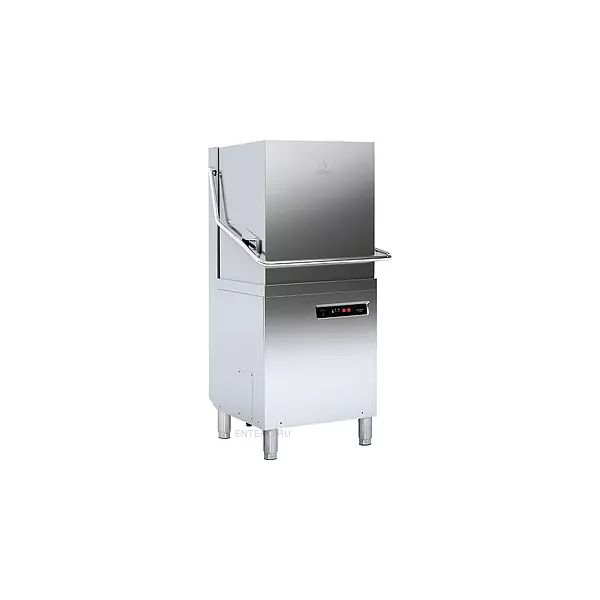

Hood-type dishwasher CO-142

Възползвайте се от удобството да закупите уреди на изплащане или да финансирате на вноски цялостното оборудване на вашата професионална кухня или перално стопанство. С нашите партньори ще Ви предложим най-добрите условия за изпълнението на вашия проект, без да е необходимо да плащате цялата сума предварително. tbitbi Запитване за лизинг

Professional console dishwasher with electronic control.

Model CO-142 HRS has a built-in heat recovery system/recooperator - significant reduction in electricity costs.

DESCRIPTION:

  • Console dishwasher with lid - EVO Generation
  • Made of stainless steel.
  • Counterweight lid with handle and spring system.
  • Double rotating washing and rinsing system/arms, top and bottom, made of stainless steel.
  • 440 mm lid opening (Accommodates GN 1/1 gastronorm trays).
  • 750 W washing pump, providing high water flow.
  • Rounded tank for easy washing and drainage.
  • Armored stainless steel heating elements in the wash tank and rinse boiler.
  • Multivoltage: Allows the machine to be connected to a network with single-phase or three-phase voltage. (230 1N~/230 3~/400V 3N~).
  • AISI-304 stainless steel filter trays in the wash tank.
  • Thermostatic temperature control (wash 60°C and rinse 85°C).
  • Thermal shutdown system that guarantees a rinse temperature of 85°C. The machine does not start working before reaching the temperature.
  • Switch for safe stopping of the machine when opened.
  • Safety thermostat.
  • Water consumption per cycle of 2.4 liters.
  • Model for 500 x 500 mm baskets.
  • Model with electronic control and display for temperature, functions and errors.
  • Wash cycles: 55s, 75s, 120s and 600s.
  • Theoretical maximum performance of 65 baskets/hour (1170 dishes/hour).
  • Tank with a volume of 33 liters, with a heating element of 4.5 kW.
  • Boiler with a volume of 9 liters, with a heating element of 9 kW.
  • Alternative or simultaneous heating of the tank and the boiler.
  • Maximum total power: 9.75 kW (alternative) or 14.75 kW (simultaneous) heating.
  • IPX4 water protection.

OPTIONAL OPTIONS: - Electrical connection for ships 440V

ACCESSORIES SUPPLIED:

19000484 Glass basket, 500x500x110 mm. 1
19000487 Basket for 16-18 plates 500x500x110 mm. 1
19000792 Basket for 15 utensils 105x105x130 mm. 2

NOTE:

Water connection: It is advisable to introduce sanitary water in the dishwashers, with a temperature of 50 - 60 ºC.

Water pressure: Minimum: 2 bar = 2 kg/cm2 Maximum: 4 bar = 4 kg/cm2

Water softener: All glass / dishwashers should be connected to a treated water supply when the local supply is over 10 HF / 6 HD.



Capacity of boiler:
  • 9л
Capacity of tank:
  • 33л
Clearance:
  • 440мм
Dispenser of detergent:
  • Да
Dispenser of rinse aid:
  • Не
Draining pump:
  • Не
Productivity:
  • 65кг/ч
Rinsing pump:
  • Не
Size of basket:
  • 500/500мм
Suitable for GN1/1:
  • Да
Water consumption:
  • 4.20л/цикъл

Basic model (CO-142_19073919.pdf, 853 Kb) [Download]

Drainage pump (CO-142_B_19075277.pdf, 853 Kb) [Download]

Drainage pump and peristaltic detergent dozer (CO-142_B_DD_19075279.pdf, 853 Kb) [Download]

Peristaltic detergent dozer (CO-142_DD_19075278.pdf, 853 Kb) [Download]

Heat recovery system model (CO-142_HRS_19075041.pdf, 1,740 Kb) [Download]

Heat recovery system, Drainage pump and peristaltic detergent dozer (CO-142_HRS_B_DD_19075282.pdf, 1,642 Kb) [Download]
