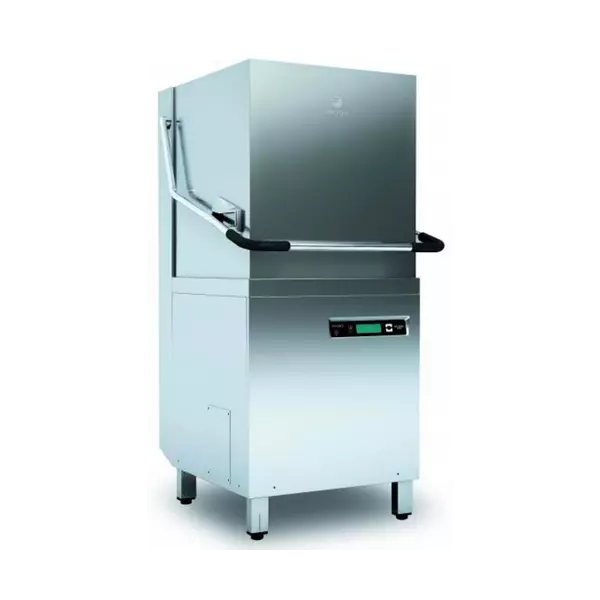

Hood-type dishwasher AD-125/ HRS

Възползвайте се от удобството да закупите уреди на изплащане или да финансирате на вноски цялостното оборудване на вашата професионална кухня или перално стопанство. С нашите партньори ще Ви предложим най-добрите условия за изпълнението на вашия проект, без да е необходимо да плащате цялата сума предварително. tbitbi Запитване за лизинг

Professional console dishwasher with digital control.

Model AD-125 HRS has a built-in heat recovery system/recooperator - significant reduction in electricity costs.

DESCRIPTION:

  • Console dishwasher - EVO Generation
  • Made of stainless steel.
  • Top/lid is double-walled from special compressed insulating material, with counterweight with handle and spring system.
  • Double rotating system (arms) for washing and rinsing, top and bottom, made of stainless steel.
  • 440 mm opening on the lid (allows GN 1/1 gastronorm trays).
  • 750 W wash pump, providing high water flow.
  • Rounded tank for easy washing and drainage.
  • Armored stainless steel heating elements in the wash tank and rinse boiler.
  • Multi-voltage: Allows the machine to be connected to a single-phase or three-phase network. (230 1N~/230 3~/400V 3N~).
  • AISI-304 stainless steel filters in the wash tank.
  • Thermostatic temperature control (wash 60°C and rinse 85°C).
  • Thermal shutdown system that guarantees a rinse temperature of 85°C, the system does not allow operation to start before reaching the temperature.
  • Switch in the lid opening for safe stopping of the machine when opened.
  • Safety thermostat.
  • Water consumption per cycle of 2.4 liters.
  • Model for 500 x 500 mm baskets.
  • Model with electronic and digital control. Digital display with information on programs, times and temperatures.
  • Electronic programmer with technical assistance system. Possibility of programming the washing cycles.
  • Washing cycles: 55s, 75s, 120s, 480s and a glass and glassware washing cycle.
  • Glass and glassware washing program, with a duration of 90s, washing temperature 60°C and rinsing temperature 65°C, in accordance with the requirements of the hygiene and safety standard DIN10511.
  • Theoretical maximum performance of 65 baskets/hour (1170 plates/hour).
  • Tank with a volume of 28 liters, with a heating element of 2.1 kW.
  • Boiler with a volume of 9 liters, with a heating element of 9 kW.
  • Simultaneous heating of the tank and the boiler.
  • Maximum total power: 11.85 kW (simultaneous).
  • Drain pump - power 70 W. Program for emptying the tank.
  • Rinse pump - 150 W.
  • The rinse pump guarantees a perfect hygienic result with a full linear rinse cycle at 85°C. (EFFIRINSE) according to the requirements of the hygiene and safety standard DIN10512.
  • Built-in detergent dispenser.
  • Built-in rinse aid dispenser.
  • Air brake check valve type AA in accordance with EN 1717/WRAS.
  • IPX5 water protection.

POSSIBLE OPTIONS: - Electrical connection for ships 440V

ACCESSORIES SUPPLIED:

  • 19000484 Glass basket, 500x500x110 mm. 1
  • 19000487 Basket for 16-18 plates 500x500x110 mm. 1
  • 19000792 Basket for 15 utensils 105x105x130 mm. 2

NOTE:

Water connection: It is advisable to introduce sanitary water in the dishwashers, with a temperature of 50 - 60 ºC.

Water pressure: Minimum: 2 bar = 2 kg/cm2 Maximum: 4 bar = 4 kg/cm2

Water softener: All glass / dishwashers should be connected to a treated water supply when the local supply is over 10 HF / 6 HD.

Capacity of boiler:
  • 9л
Capacity of tank:
  • 28л
Clearance:
  • 440мм
Dispenser of detergent:
  • Да
Dispenser of rinse aid:
  • Да
Double isolated door:
  • Да
Double-isolated body:
  • Да
Draining pump:
  • Да
Productivity:
  • Дакг/ч
Rinsing pump:
  • Да
Size of basket:
  • 500/500мм
Suitable for GN1/1:
  • Да
Water consumption:
  • 4.20л/цикъл
Power:
12kW

Basic model (AD-125_19073921.pdf, 858 Kb) [Download]

Softener (AD-125_SOFT_19075295.pdf, 858 Kb) [Download]

Model with heat recovery system (AD-125_HRS_19075296.pdf, 955 Kb) [Download]

Heat recovery system + Softener (AD-125_SOFT_HRS_19074195.pdf, 954 Kb) [Download]
