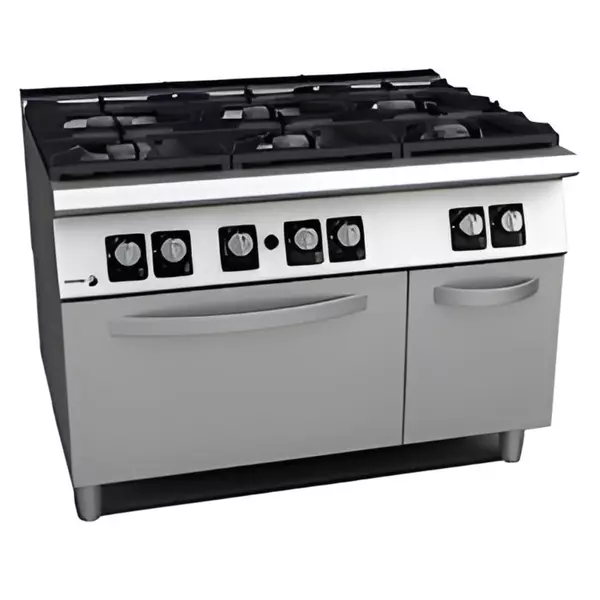

Gas (LPG/NG) cooker with 6 burners and GN 2/1 oven. LINE 900. Two versions are available according to the different power of the burners, which allows practical adaptation to the cookware used and the different food products:
1) 3 x 5.25kW + 2 x 8.0kW + 1 x 10.2kW;
2) 5 x 8.0kW + 1 x 10.2kW;
Burner dimensions: 5.25 kW (Ø 100 mm); 8.0 kW (Ø 120 mm); 10.2 kW (Ø 140 mm)
- Stamped surface top made of AISI-304 stainless steel with a thickness of 2 mm.
- Laser cutting, automatic welding and polishing of the elements.
- Hotplates with dimensions of 397 x 350 mm, which allows the use of large pans and pots
- The shortened distance of 75 mm between the central teeth of the grates - allows the use of pans with a very small diameter (8 cm). This also avoids the risk of overturning the cookware.
- The hotplates are made of RAAF enameled cast iron (resistant to acid and alkali products, fire and high temperatures).
- Double crown burners and nickel-plated cast iron diffusers, guaranteeing uniform heat distribution from the flame to the bottom of the pans. This avoids heat accumulation at one point and optimizes energy transfer to the product.
- Low-consumption pilot flame and thermocouples located in the burner body for greater protection.
- Gas conduction ensured in flexible stainless steel pipes, facilitating internal manipulation and repair work.
- Controls placed on a protective base with a system against water penetration.
- High-temperature enamelled cast iron protector, aligned with the hotplates, facilitates maneuverability, increasing the useful working surface.
- Access to components from the front.
OVEN 8.6kW
- Static gas oven for GN 2/1 trays.
- User-friendly controls on the top panel for better ergonomics.
- Stainless steel cooking chamber for better hygiene.
- Trays placed laterally for user convenience.
- Three-level guides offer different usage options.
- The guide rails are "U" shaped to prevent the trays from tipping over.
- Temperature control via thermostatic valve (125 - 310 °C).
- Heating: Gas: Stainless steel tubular burner (two branches for OP version), with pilot flame, thermocouple and piezo electric ignition.
- The oven floor is made of 6 mm cast iron, which guarantees even heat distribution.
- Fiberglass gasket - improves the oven's thermal efficiency and guarantees durability.
- Removable oven door that makes repairs easier.
