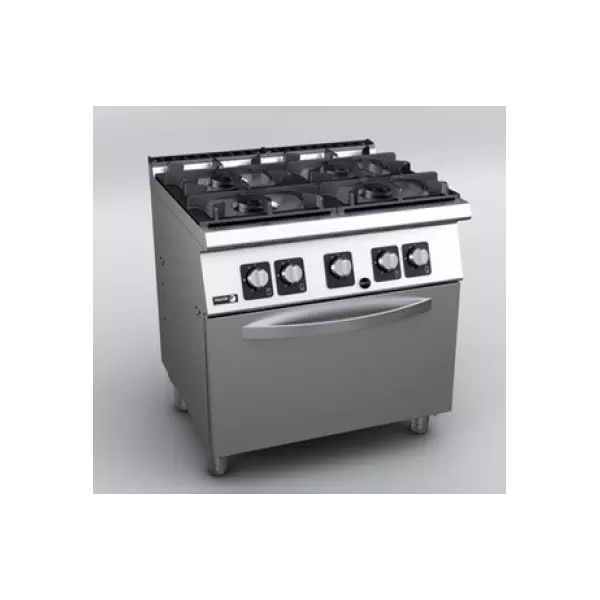

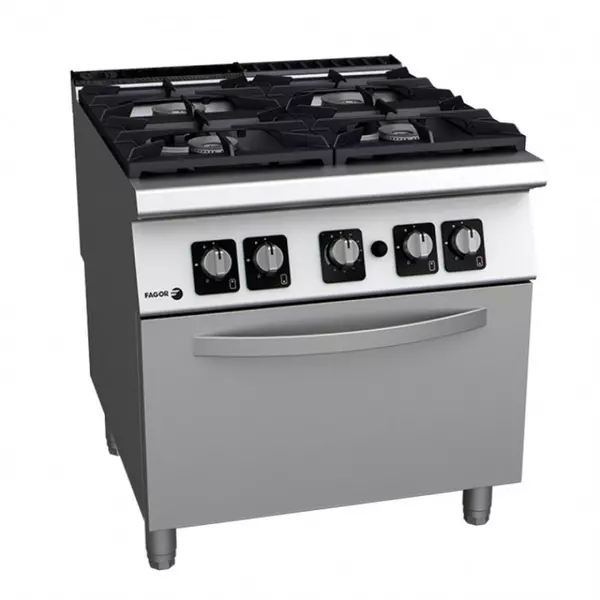

Gas (LPG/NG) cooker with 4 burners and gas oven. LINE 700.
Two versions are available according to the different power of the burners, which allows practical adaptation to the cookware used and the different food products:
1) 3 x 5.25kW + 1 x 8.0kW;
2) 4 x 8.0kW;
HOBS:
- Stamped surface tops made of AISI-304 stainless steel with a thickness of 1.5 mm;
- Laser cutting of the joints /connecting elements/ and automatic welding. Hidden screws;
- The dimensions of 397 x 580 mm of the double grids (397 x 290 mm for each burner) allow the use of large pots and pans, while the reduced distance of 75 mm between the central grids allows the use of those with a very small diameter (8 cm), avoiding the risk of tipping over;
- The grids are made of RAAF enamelled cast iron (resistant to alkaline and acidic products, fire and high temperatures);
- The double crown burners are made of nickel-plated cast iron, which guarantees an even distribution of heat from the flame to the bottom of the cookware. This prevents heat from accumulating at a specific point and optimizes the energy transfer to the product;
- Burners with different power to adapt to different cookware and different foods:
- 5.25 kW (Ø 100 mm) - 3 burners,
- 8.0 kW (Ø 120 mm) - 1 burner;
- Burners are easy to position;
- Pilot flame with piezoelectric ignition and low-consumption thermocouples located inside the burner for better protection;
- Flexible stainless steel gas pipes, providing internal manipulations to facilitate repairs;
- Control controllers with a system to prevent water ingress, located on a protective support base;
- Access to components from the front.
OVEN 8.6kW:
- Choose between a static gas oven for NG 2/1 trays and an English-style oven measuring 860x570x410 mm and a side-opening double door.
- Cooking chamber made entirely of stainless steel, which makes cleaning easier and ensures greater hygiene;
Heating:
- Gas: stainless steel tubular burner with pilot flame and piezoelectric ignition;
- Thermostatic valve for temperature control (125 - 310 °C);
- Three-level height rails to offer different cooking options. The rails have an anti-tip system;
- Cast iron oven floor, which guarantees better performance and even heat distribution;
- Fiberglass closing gasket to improve the oven's thermal efficiency. Guarantees the durability of the oven;
- Stamped frame and inner oven door, ensuring better closing;
- Removable oven door for easy maintenance.
POSSIBLE OPTIONS: - Wheel set (factory fitted)
