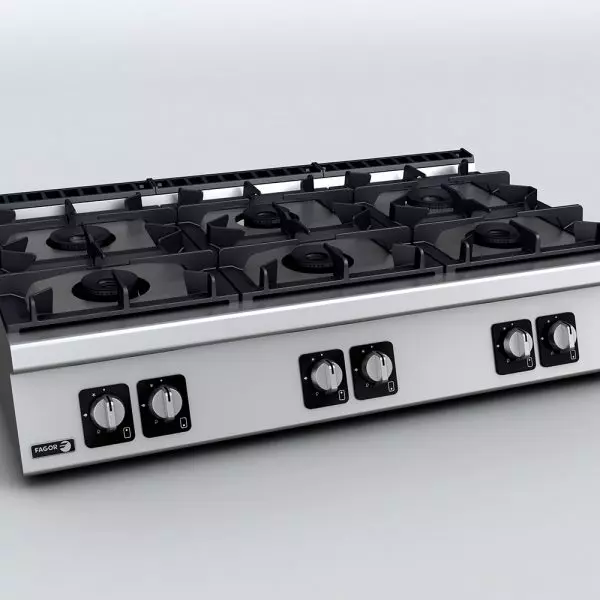

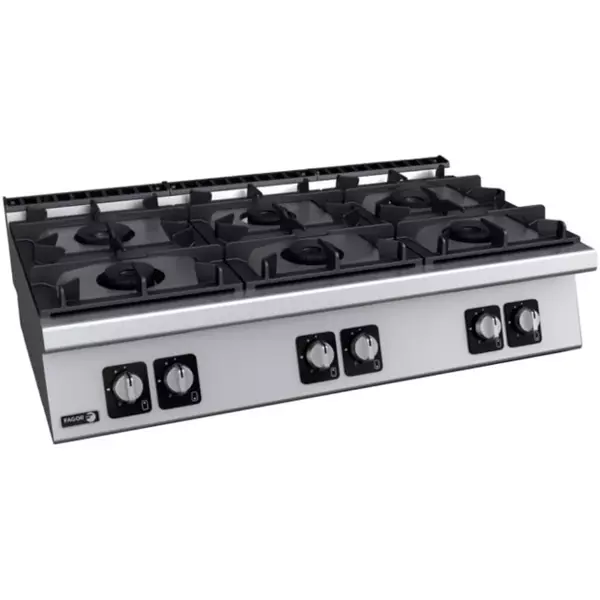

Gas cooker with 6 burners (different power) - C-G760

Възползвайте се от удобството да закупите уреди на изплащане или да финансирате на вноски цялостното оборудване на вашата професионална кухня или перално стопанство. С нашите партньори ще Ви предложим най-добрите условия за изпълнението на вашия проект, без да е необходимо да плащате цялата сума предварително. tbitbi Запитване за лизинг
C-G760 LPG
LPGNG
Fagor
19068059
Contact us for a price
Need help?02/862 55 66

Gas cooker (LPG or NG) countertop model with 6 powerful burners, line 700.

Two versions according to the burner power:

1) 4 x 5.25 kW (Ø 100 mm) + 2 x 8.0 kW (Ø 120 mm);

2) 6 x 8.0 kW.

  • Stamped surface tops made of AISI-304 stainless steel with a thickness of 1.5 mm;
  • Laser cutting of the joints /connecting elements/ and automatic welding. Hidden screws;
  • The dimensions of 397 x 580 mm of the double grates (397 x 290 mm for each burner), allow the use of large pots and pans, while the reduced distance of 75 mm between the central grates allows the use of those with a very small diameter (8 cm), avoiding the risk of tipping over;
  • The grates are made of RAAF enameled cast iron (resistant to alkaline and acidic products, fire and high temperatures);
  • The double crown burners are made of nickel-plated cast iron, which guarantees an even distribution of heat from the flame to the bottom of the cookware. This prevents heat accumulation at a specific point and optimizes energy transfer to the product;
  • Burners are easy to position;
  • Pilot flame with piezoelectric ignition and low consumption thermocouples, located inside the burner for better protection;
  • Flexible stainless steel gas pipes, providing internal manipulations to facilitate repairs;
  • Controls with a system to prevent water ingress, located on a protective support base;
  • Access to components from the front.

Note: All gas cooking equipment must be equipped with gas regulators:
- LPG: 37 g/cm2
- Natural gas: 20 g/cm

Model:
C-G760 LPG
Power supply:
  • LPG
  • NG
Power:
37kW
Sizes:
1200x730x290 mm
Net weight:
78 kg

Газови печки

BURNERS:
4 x 5.25 + 2 x 8.0 kW
LPG/NG:
LPG

C-G760 LPG (C-G760_19068059.pdf, 922 Kb) [Download]

C-G760 NG (NG_C-G760_19074762.pdf, 922 Kb) [Download]

C-G760 H LPG (C-G760_H_19068110.pdf, 922 Kb) [Download]

C-G760 H NG (C-G760_H_NG_19074763.pdf, 922 Kb) [Download]
