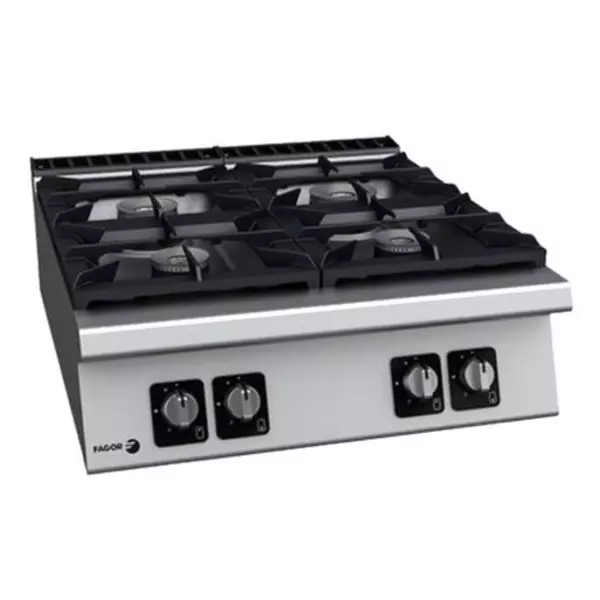

Gas cooker with 4 burners (different power) - C-G740

Възползвайте се от удобството да закупите уреди на изплащане или да финансирате на вноски цялостното оборудване на вашата професионална кухня или перално стопанство. С нашите партньори ще Ви предложим най-добрите условия за изпълнението на вашия проект, без да е необходимо да плащате цялата сума предварително. tbitbi Запитване за лизинг
C-G740 LPG
LPGNG
Fagor
19060614
Contact us for a price
Need help?02/862 55 66

Gas (LPG/NG) cooker, countertop model with 4 burners. LINE 700. The hobs can be powered by propane butane or natural gas.

Two versions are available according to the different power of the burners:

1) 3 x 5.25kW (Ø 100 mm) + 1 x 8.0kW (Ø 120 mm);

2) 4 x 8.0kW;

  • Stamped surface tops made of AISI-304 stainless steel with a thickness of 1.5 mm;
  • Laser cutting of the joints /connecting elements/ and automatic welding. Hidden screws;
  • The dimensions of 397 x 580 mm of the double grids (397 x 290 mm for each burner) allow the use of large pots and pans, while the reduced distance of 75 mm between the central grids allows the use of those with a very small diameter (8 cm), avoiding the risk of tipping over;
  • The grids are made of RAAF enamelled cast iron (resistant to alkaline and acidic products, fire and high temperatures);
  • The double crown burners are made of nickel-plated cast iron, which guarantees an even distribution of heat from the flame to the bottom of the cookware. This prevents heat from accumulating at a specific point and optimizes the energy transfer to the product;
  • Burners with different power to adapt to different cookware and different foods:
  • 5.25 kW (Ø 100 mm) - 3 burners,
  • 8.0 kW (Ø 120 mm) - 1 burner;
  • Burners are easy to position;
  • Pilot flame with piezoelectric ignition and low-consumption thermocouples located inside the burner for better protection;
  • Flexible stainless steel gas pipes, providing internal manipulations to facilitate repairs;
  • Control controllers with a system to prevent water ingress, located on a protective support base;
  • Access to components from the front.

Note: All gas cooking equipment must be equipped with gas regulators:
- LPG: 37 g/cm2
- Natural gas: 20 g/cm

Power supply:
  • LPG
  • NG
Power:
23.75kW
Sizes:
800x730x290 mm
Net weight:
56 kg

Газови печки

BURNERS:
3 х 5.25 + 1 x 8.0 kW
LPG/NG:
LPG

C-G740 LPG (C-G740_19060614.pdf, 764 Kb) [Download]

C-G740 NG (C-G740_NG_19073557.pdf, 969 Kb) [Download]

C-G740 H LPG (C-G740_H_19068058.pdf, 969 Kb) [Download]

C-G740 H NG (NG_C-G720_H_19074760.pdf, 868 Kb) [Download]
