Pasta cookers (2х40L) NG-1/1 - CP-7240

Възползвайте се от удобството да закупите уреди на изплащане или да финансирате на вноски цялостното оборудване на вашата професионална кухня или перално стопанство. С нашите партньори ще Ви предложим най-добрите условия за изпълнението на вашия проект, без да е необходимо да плащате цялата сума предварително. tbitbi Запитване за лизинг
Fagor
110723, 010625

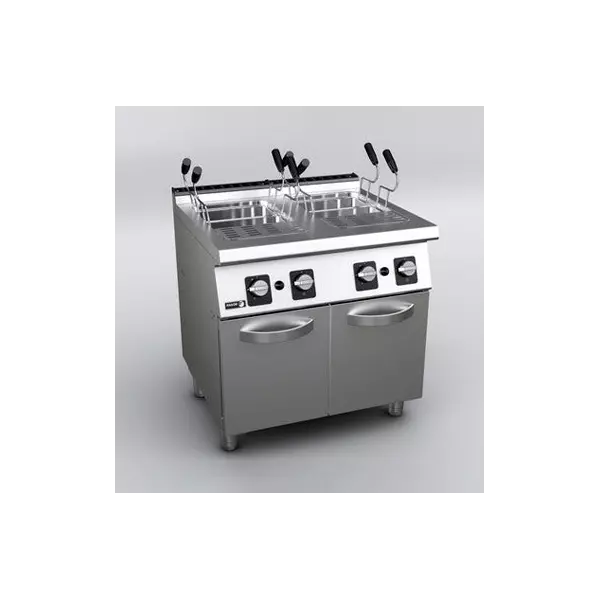

Pasta cooker with 2 well NG-NG-1/1 - 40 liters capacity and 6 baskets (can be used with different basket sizes). Series 700. The model is available on gas (LPG/NG) or electric.

  • Surface countertops made of 1.5 mm thick AISI-304 stainless steel.
  • Laser cutting of joints, automatic welding and polishing of connecting elements, without sharp edges.
  • 1.5 mm thick AISI-316L stainless steel nests built into the top surface.
  • 2 well sizes:

· GN-2/3 wells, with a capacity of 26 liters
· GN-1/1 wells, with a capacity of 40 liters

  • The well is filled through the inlet solenoid valve with a two-position switch: medium and high speed filling.
  • Well drainage through a mechanical valve that is resistant to high temperatures and has a safety overflow.
  • Automatic safety system - stops the power supply in case the water runs out.
  • The controls are located on a protective support base and a system to prevent water ingress.
  • IPX5 water protection level.

GAS MODELS

  • High-performance stainless steel burner located outside the well with a combustion chamber that allows heating of the base and sides of the well.
  • Piezoelectronic burner ignition, with access for manual ignition.
  • Heating is controlled by a safety valve.

ELECTRICAL MODELS

  • AISI 304 stainless steel heating elements located inside the well for direct heating of the water.
  • Heating is controlled by an energy regulator.
  • Voltage: 400 V 3+N.

POSSIBLE OPTIONS :

- 230 1N- Transformation A 230 V single-phase

- 230 III - A 230 V three-phase transformation without neutral

- MARINE - Transformation for ships - 440 III

Standard models:

- 26 L models: 2 x 1/3 baskets per well.
- 40 L models: 3 x 1/3 baskets per well - Supplied with 3 1/3 GN baskets art. no.: 12008637

Gas

El.

Model

Code N:

LPG I NG

Well

NG-1/1

Baskets

(1/3)

Power

kW

Dimenssions

мм

G

CP-G7240

19098555

19098556

2

6

33,00

800x730x850

E

CP-E7240

19074780

2

6

24,00

800x730x850

Additional accessories:

- Set of 6 x 1/6 square baskets
- Set of 6 x 1/6 round baskets
- Set of 4 x ¼ baskets
- Set of 2 x ½ baskets
