Tilting cylindrical boiling pans (150L) - MCB-150

Възползвайте се от удобството да закупите уреди на изплащане или да финансирате на вноски цялостното оборудване на вашата професионална кухня или перално стопанство. С нашите партньори ще Ви предложим най-добрите условия за изпълнението на вашия проект, без да е необходимо да плащате цялата сума предварително. tbitbi Запитване за лизинг
MCBG-150
SteamElectricGas
Fagor
19001227
Contact us for a price
Need help?02/862 55 66

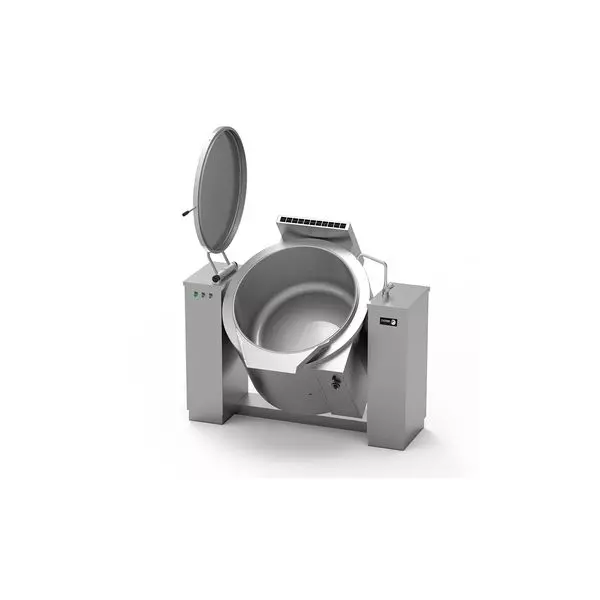

Tilting cylindrical boiling pans with a capacity of 150 liters. Gas, el. or steam models.

  • Automatic tilting boiler with lateral stabilizing columns. Tilting the boiler facilitates the transfer of solid foods. This is the fastest and easiest way to cook large quantities.
  • Vessel with bottom in AISI-316 stainless steel with a thickness between 20/10 and 40/10 and a double wall in AISI-304 stainless steel with a thickness between 20/10 and 25/10.
  • Lid in AISI-304 stainless steel with a thickness of 15/10, balancing springs, athermic handle and insulated lid available on request.
  • Pressure gauge to control the pressure inside the double wall.
  • Manual release valve to reduce the pressure produced in the double wall during the heating process.
  • Adjustable chrome-plated bronze mixer with hot and cold water.
  • Safety valve set at 0.5 bar.
  • 30/10 thick stainless steel support structure mounted on a frame.
  • External part in fine satin-finished AISI-304 steel. Thermal insulation guaranteed by ceramic panels with high fiber density.
  • Automatic cylinder tilting system by hydraulics.
  • Automatic shutdown system when tilted.

HEATING
GAS - DIRECT AND INDIRECT MODELS:

  • Burners - high-efficiency tubular stainless steel structure.
  • Manual piezoelectric ignition and pilot flame.
  • Smoke exhaust grille.
  • Faucet with safety valve and thermocouples (direct version).

ELECTRIC INDIRECT MODELS:

  • Heated by heating elements immersed in Incoloy alloy with adjustable power by means of an energy variator.
  • Safety thermostat that ensures that the machine does not operate in case of overheating or insufficient water.
  • Water control in the double wall with taps and automatic water filling option.
  • Standard operating voltage of 400V-3N50Hz

INDIRECT STEAM MODELS:

  • Heated with steam (from an additional connection) through a valve that allows steam to be added gradually to the vessel.
  • Indirect heating equipment includes: pressure control in the double wall through a safety valve set at 0.5 bar, manual vacuum valve and pressure gauge.

Heating

Model

Catalog N:

Power kW

Dimenssions mm

Directly heated gas

MCBG-150

19001227

26.4

1600x970x1050

Indirectly heated gas

MCBIG-150

19001286

26.4

1600x970x1050

Indirectly heated steam, electric

MCBIE-150

19003052

12.4

1600x885x1050

Indirectly heated steam

MCBIV-150

19001289

0.4

1600x885x1050

Model:
MCBG-150
Voltage (V/Ph/Hz):
230/1N/50
Power supply:
  • Steam
  • Electric
  • Gas
Power:
26.4kW
Sizes:
1600x970x1050 mm
Net weight:
360 kg

Парни казани

Heating:
Direct fire
Power supply :
Gas

Gas - Direct (MCBG-150_19001227.pdf, 1,056 Kb) [Download]

Gas - Indirect (MCBIG-150_19001286.pdf, 1,088 Kb) [Download]

Electric - Indirect (MCBIE-150_19003052.pdf, 1,056 Kb) [Download]

Steam - Indirect (MCBIV-150_19001289.pdf, 1,058 Kb) [Download]
