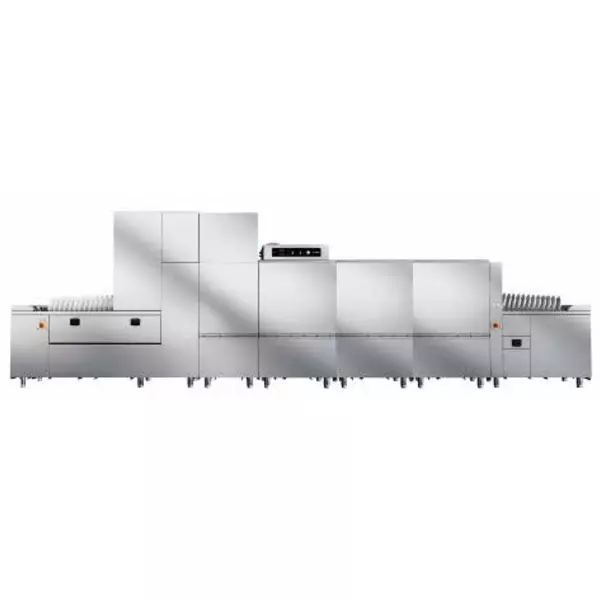

Flight type dishwasher (6600dishes/H) FCO-P2W4-RD

Възползвайте се от удобството да закупите уреди на изплащане или да финансирате на вноски цялостното оборудване на вашата професионална кухня или перално стопанство. С нашите партньори ще Ви предложим най-добрите условия за изпълнението на вашия проект, без да е необходимо да плащате цялата сума предварително. tbitbi Запитване за лизинг
Fagor
FCO-P2W4-RD

Electric dishwasher with left or right entry, pre-wash area and 2 wash modules - Flight type. Flight type dishwashers have a conveyor belt that moves the baskets through a steel tunnel for thorough cleaning. The path is usually a straight line, which means that the modular units require a lot of space. The dishwasher has a loading area, different modules according to function and an unloading area.

DESCRIPTION:

  • The wash modules are without internal pipes.
  • Double-layer construction.
  • Double-walled doors with heat and sound insulation.
  • The doors are counterbalanced with safety stops that stop the process, allowing full and unrestricted access to all zones (pre-wash, wash, pre-rinse, rinse).
  • Modular construction allowing the machine to be divided into modules.
  • Entrance tunnel 630 x 440 mm.
  • Loading section 1.2m long and unloading section 2.2m long, at a height of 900mm.
  • Splash guard (AS) in the loading area -150mm with double curtain.
  • Automatic activation of the washing process by a photocell detecting the presence of dishes.
  • The speed of the conveyor belt is controlled by a frequency converter and a microswitch. This allows the machine to stop in the event of a blockage without damaging it. An unblocking function reverses the belt to remove the blockage.
  • Autotimer: after a period of inactivity, the traction motor is deactivated, reducing energy consumption.
  • Energy saving mode (stand by): Reduces electricity consumption and limescale deposits on the heated elements by reducing the temperature of the boiler and the water tank when the machine is not working.
  • Automatic preheating system. Activates the wash pumps and the drying module before reaching the set temperature to warm up the environment, thus achieving a quick start of the machine.
  • Wash tanks: 100-liter tank in the pre-wash area and 100-liter in the wash area.
  • The washing system consists of 6 upper and 5 lower arms with high-performance rinsing nozzles, made of stainless steel in the pre-wash area and the wash area, which are removable and easy to clean.
  • Three-stage filtration in the wash and re-wash modules.
  • The bottom of the tank is perforated to guarantee complete drainage and facilitate cleaning.
  • Thermally insulated boilers.
  • Adjustable steam suction system that prevents its evaporation.
  • Built-in energy recovery system located in the upper part of the machine. Allows a reduction of the installed power by 9kW.
  • Dryer (D) placed in the unloading area and possibility of adding up to 2 additional dryers.
  • Curtains resistant to high temperatures and detergents installed between the modules to prevent water splashes and contamination. Double curtains at the machine entrance and exit.
  • Sensor for detecting the end of the conveyor belt with stop and automatic start.
  • Electronic water temperature control for all processes.
  • Safety thermostat.
  • 3 production programs. Complies with the hygiene standard DIN 10534.
  • Water protection IPX5 category.

SPECIFIC FEATURES:

  • Electromechanical switch that allows you to choose between 3 programs and two digital displays for control and visualization of the washing and rinsing temperature.
  • Intensive program (DIN-10534): 3350 dishes/h. - 220l/h. - wash 65 (ºC) - rinse 85 (ºC)
  • Medium program: 4970 dishes/h. - 245l/h. - wash 65 (ºC) - rinse 85 (ºC)
  • High capacity program: 6600 dishes/h. - 270l./h - wash 65 (ºC) - rinse 85 (ºC)

MODULE COMPOSITION - total length 6780mm

  • (AS) Splash protection module at the inlet. Loading area + AS - 1180mm
  • (P) Pre-wash with cold water: Consists of 6 upper arms and 5 lower arms. Continuous renewal of the pre-wash water with a constant amount of pre-rinse water, channeling the excess through a recirculation pump. - 900mm.
  • (2W) Two main wash modules at 65ºC. - 2x900mm.
  • Pre-rinse / rinse - gradual rinse with rinse pump. - 700mm.

· Pre-rinse: Consists of 3 upper and 1 lower pre-rinse arms.
· Rinse: With one rinse pump. Consists of 1 upper and 1 lower rinse arm. Uses a frequency converter for the pump, which allows automatic adaptation of the amount of rinse water to the selected conveyor speed.

  • Energy recovery as standard (R) - in the upper part of the machine.
  • (D) Powerful dryer for optimal drying of ceramic dishes. Possibility of adding two additional dryers for drying plastic or stainless steel. + unloading area - 2200mm.
  • MAX. PRODUCTION (PLATES/HOUR): 6600

ACCESSORIES SUPPLIED:

  • 19000484 Standard basket 2pcs.
  • 19000488 Baskets for 16 glasses with a diameter of 110 mm and a height of 105 mm 2pcs.
  • 19036306 Standard basket with a solid base 1pcs.

NOTE:

Water connection: It is advisable to introduce sanitary water in the dishwashers, with a temperature of 15 - 25 ºC.

Water pressure: Minimum: 2 bar = 2 kg/cm2 Maximum: 4 bar = 4 kg/cm2 Water softener:

All glass / dishwashers should be connected to a treated water supply when the local supply is over 10 HF / 6 HD.

Capacity of tank:
  • 2х100л
Double isolated door:
  • Да
Draining pump:
  • Да
Productivity:
  • 6600кг/ч
Rinsing pump:
  • Да
Size of basket:
  • 500/500мм
Suitable for GN1/1:
  • Да
Water consumption:
  • 220-270л/цикъл
Power:
68kW
