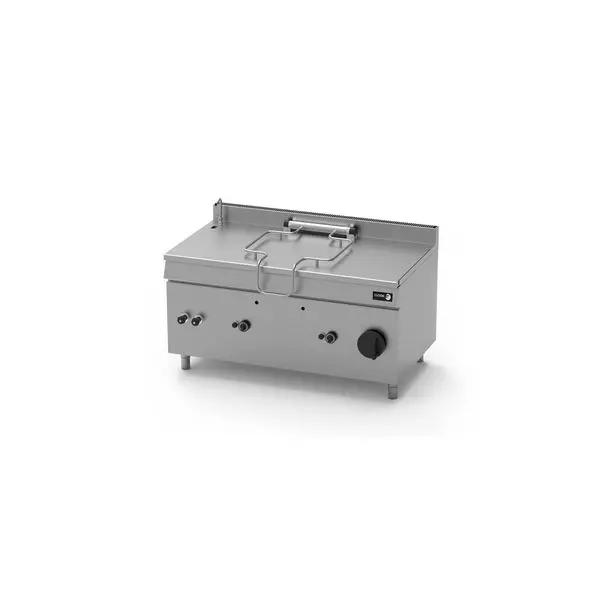

Motorized tilting bratt pans (200L) direct heating - SB-200 M

Възползвайте се от удобството да закупите уреди на изплащане или да финансирате на вноски цялостното оборудване на вашата професионална кухня или перално стопанство. С нашите партньори ще Ви предложим най-добрите условия за изпълнението на вашия проект, без да е необходимо да плащате цялата сума предварително. tbitbi Запитване за лизинг
SBG-200 M
ElectricGas
Fagor
19079430
Contact us for a price
Need help?02/862 55 66

Direct heating motorized tilting bratt pans, 200 litre capacity. Gas or electric version of the model.

  • The walls of the cooking vessel are made of AISI 304 stainless steel.
  • 10 mm thick AISI 304 stainless steel bottom Optional: 12 mm thick bottom made of composite (9 mm iron + 3 mm steel).
  • Cooking chamber with non-stick coating and ceramic microspheres.
  • Water can be added to the chamber using a single-hole tap.
  • Lid in 10/10 thick AISI 304 stainless steel, with chrome-plated stand and spring and stainless steel handle.
  • Support structure in 20/10 thick stainless steel, mounted on adjustable steel leveling feet.
  • External walls in 10/10 thick satin-finished AISI 304 stainless steel.
  • Shelf/counter in 20/10 thick satin-finished AISI 304 stainless steel.
  • Automatic motorized tilt
  • Manual tilt system in case of error.
  • Automatic shutdown in case of system failure.

HEATING
DIRECT GAS:

  • Manual piezoelectric ignition and pilot flame.
  • Heating by high-performance tubular burners.
  • Burners in AISI 304 stainless steel.
  • Smoke exhaust grille.
  • Set of nozzles for different types of gas.
  • Safety thermostat.
  • Faucet with safety valve and thermocouple.
  • Temperature regulation between 100 °C and 300 °C

DIRECT ELECTRIC:

  • Heating system by electric heating elements.
  • Safety thermostat that prevents overheating.
  • Temperature control (50 °C - 260 °C).
  • Standard supply voltage 400 V 3N 50/60 Hz

Heating

Model

Catalog code

Power kW

Gas

SBG-200 M

 19079430

44,01

El

SBE-200 M

19085076

20,1



Model:
SBG-200 M
Voltage (V/Ph/Hz):
220-230/1N/50-60
Power supply:
  • Electric
  • Gas
Power:
44.1kW
Sizes:
1600x900x850 mm
Net weight:
210 kg

Парни казани

Power supply :
Gas

Electric (SBE-200_M_19085076.pdf, 1,682 Kb) [Download]

Gas (SBG-200_M_19079430.pdf, 726 Kb) [Download]
