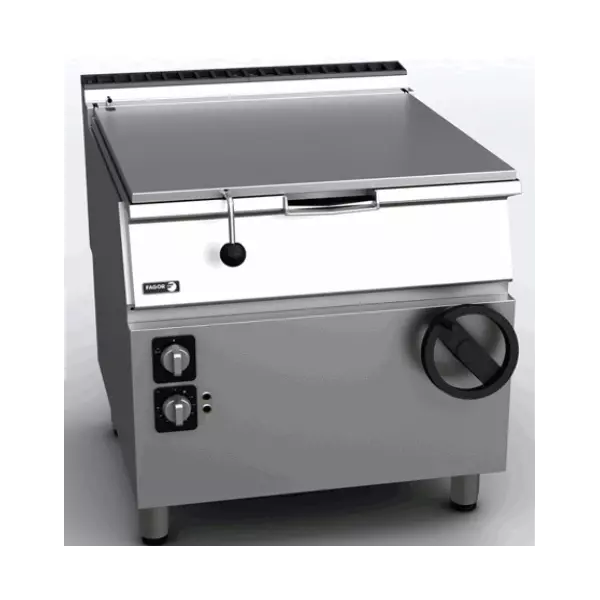

Tilting bratt pans (90L) - SB-910

Възползвайте се от удобството да закупите уреди на изплащане или да финансирате на вноски цялостното оборудване на вашата професионална кухня или перално стопанство. С нашите партньори ще Ви предложим най-добрите условия за изпълнението на вашия проект, без да е необходимо да плащате цялата сума предварително. tbitbi Запитване за лизинг
SB-G910 I LPG
KORE 900
ElectricLPGNG
Fagor
19075867
Contact us for a price
Need help?02/862 55 66

Tilting bratt pans 90 liter capacity, 900 KORE series. Models can be electric cast iron/stainless steel, with manual or motorized turning, as well as gas, propane or natural gas at 50 or 60 Hz, cast iron/stainless steel, manual or motorized.

General characteristics

  • Laser-cut joints, automatically welded and polished elements.
  • Motorized or manually cranked lifting systems that raise the pan to a vertical position.
  • Variants with cast iron and stainless steel pans.
  • Design with rounded corners and no sharp edges and with a wide opening that allows all cooking and cleaning operations to be carried out more easily.
  • Flange around the perimeter to stop condensed water from overflowing.
  • The bottom of the pan is very thick (8 mm for iron pans and 10 mm for stainless steel pans), which guarantees even heat distribution.
  • The pans are filled with water using an electric valve with a switch on the front of the machine. The filling pipe is located at the back of the machine.
  • Double-walled lid with a drain at the back to redirect condensation back into the pan.
  • Spring-loaded lid balancing system.
  • Microswitch to stop heating when the pan is lifted.
  • High-temperature enamelled cast iron flue protector.
  • Access to components from the front.
  • Machines with IPX5 water protection.
  • Handle on the front lid for access.
  • Electric heating models use shielded stainless steel heating elements located under the bottom of the pan.
  • Gas heating models use six-branch steel burners (eight branches for one and a half module pans) controlled by a thermocouple safety valve.
  • The temperature at the bottom of the pan is controlled by a thermostat, between 50 and 310 °C.
  • Heating with branched gas burners or electric heating elements located at the base of the pan itself, together with the great thickness of the bottom of the pan, ensure maximum uniformity in temperature distribution, guaranteeing even cooking.

VOLTAGE FOR ELECTRIC MODELS:
- 400 V 3+N - Standard

POSSIBLE OPTIONS:

- 230 1N- Transformation A 230 V single-phase

- 230 III - A 230 V three-phase transformation without neutral

- Marine transformation for boats

POSSIBLE ACCESSORIES: - 900 SERIES STANDS - REFRIGERATION STANDS - KORE ACCESSORIES - KORE WHEELS - HIGH CHIMNEY

Heating

Model

Cat N:

LPG I NG

RAISING SYSTEM

TANK TYPE

Power

kW

Gas

SB-G910 I

50Hz  19075867

19075876

Manual

Stainless steel

18,00

60Hz  19075869

19075878

Gas

SB-G910

(010408)

50Hz  19075879

19075885

Manual

Cast Iron

18,00

60Hz  19075880

19075886

Gas

SB-G910 IM

50Hz  19075870

19075873

Motorized

Stainless steel

18,00

60Hz  19075872

19075875

Gas

SB-G910 M

(10721)

50Hz  19075881

19075883

Motorized

Cast Iron

18,00

60Hz  19075882

19075884

El

SB-E910 I

(010601)

19075857

Manual

Stainless steel

15,00

El

SB-E910

(010429)

19075854

Manual

Cast Iron

15,00

El

SB-E910 IM

19075860

Motorized

Stainless steel

15,00

El

SB-E910 M

19075863

Motorized

Cast Iron

15,00

  CODE Power supply Hz RAISING SYSTEM Type Price
Tilting bratt pans (90L) - SB-910
19075879
LPG 50 Hz Manual Cast Iron Contact us for a price
Tilting bratt pans (90L) - SB-910
19075870
LPG 50 Hz Motorized Stainless Steel Contact us for a price
Tilting bratt pans (90L) - SB-910
19075881
LPG 50 Hz Motorized Cast Iron Contact us for a price
Tilting bratt pans (90L) - SB-910
19075869
LPG 60 Hz Manual Stainless Steel Contact us for a price
Tilting bratt pans (90L) - SB-910
19075880
LPG 60 Hz Manual Cast Iron Contact us for a price
Tilting bratt pans (90L) - SB-910
19075872
LPG 60 Hz Motorized Stainless Steel Contact us for a price
Tilting bratt pans (90L) - SB-910
19075882
LPG 60 Hz Motorized Cast Iron Contact us for a price
Tilting bratt pans (90L) - SB-910
19075876
NG 50 Hz Manual Stainless Steel Contact us for a price
Tilting bratt pans (90L) - SB-910
19075885
NG 50 Hz Manual Cast Iron Contact us for a price
Tilting bratt pans (90L) - SB-910
19075873
NG 50 Hz Motorized Stainless Steel Contact us for a price
Tilting bratt pans (90L) - SB-910
19075883
NG 50 Hz Motorized Cast Iron Contact us for a price
Tilting bratt pans (90L) - SB-910
19075878
NG 60 Hz Manual Stainless Steel Contact us for a price
Tilting bratt pans (90L) - SB-910
19075886
NG 60 Hz Manual Cast Iron Contact us for a price
Tilting bratt pans (90L) - SB-910
19075875
NG 60 Hz Motorized Stainless Steel Contact us for a price
Tilting bratt pans (90L) - SB-910
19075884
NG 60 Hz Motorized Cast Iron Contact us for a price
Tilting bratt pans (90L) - SB-910
19075857
Electricity 50/60 Hz Manual Stainless Steel Contact us for a price
Tilting bratt pans (90L) - SB-910
19075854
Electricity 50/60 Hz Manual Cast Iron Contact us for a price
Tilting bratt pans (90L) - SB-910
19075860
Electricity 50/60 Hz Motorized Stainless Steel Contact us for a price
Tilting bratt pans (90L) - SB-910
19075863
Electricity 50/60 Hz Motorized Cast Iron Contact us for a price
Tilting bratt pans (90L) - SB-910
19075867
LPG 50 Hz Manual Stainless Steel Contact us for a price
Model:
SB-G910 I LPG
Series:
KORE 900
Voltage (V/Ph/Hz):
230/1N/50
Power supply:
  • Electric
  • LPG
  • NG
Power:
18kW
Sizes:
800x930x850 mm
Net weight:
211 kg

Обръщателни тигани

RAISING SYSTEM:
Manual
Type:
Stainless Steel

Парни казани

Hz:
50 Hz
Power supply :
LPG

Electric - Cast Iron - Manual (SB-E910_19075857.pdf, 505 Kb) [Download]

Electric - Inox - Manual (SB-E910_I_19075857.pdf, 505 Kb) [Download]

Electric - Motorized (SB-E910_I_M_19075860.pdf, 773 Kb) [Download]

Gas - Inox - Manual (SB-G910_I_19075867.pdf, 804 Kb) [Download]

Gas - Inox - Motorized (SB-G910_I_M_LPG_19075870.pdf, 762 Kb) [Download]

Gas - Cast Iron - Manual (SB-G910_19075881.pdf, 761 Kb) [Download]
