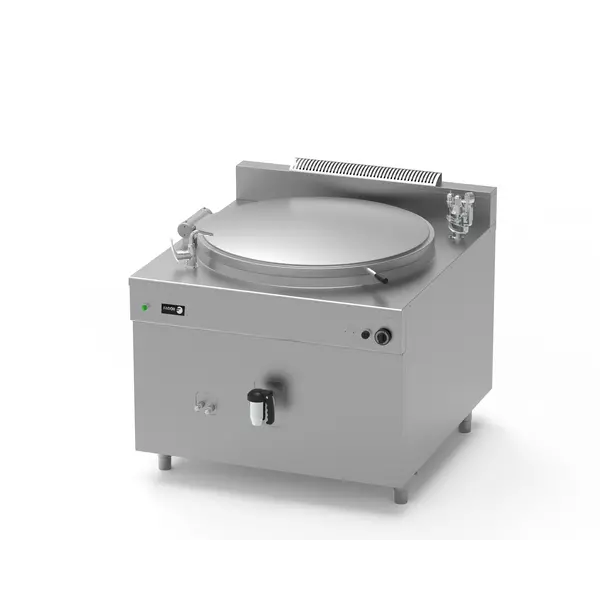

Fixed rectangular boiling pans (300L) - MR-300

Възползвайте се от удобството да закупите уреди на изплащане или да финансирате на вноски цялостното оборудване на вашата професионална кухня или перално стопанство. С нашите партньори ще Ви предложим най-добрите условия за изпълнението на вашия проект, без да е необходимо да плащате цялата сума предварително. tbitbi Запитване за лизинг
MRG-300
SteamElectricGas
Fagor
19001273
Contact us for a price
Need help?02/862 55 66

Fixed rectangular boiling pans. Can be assembled independently or with other machines. Thanks to its rigidity and functionality, it is suitable for continuous and long-term use.

Gas, el. or steam versions.

  • Vessel with bottom in AISI-316 stainless steel and thickness between 20/10 and 40/10, suitable for products that are particularly acidic.
  • Walls in AISI-304 stainless steel with thickness between 20/10 and 25/10.
  • Tank drain hole with removable filter
  • Front drain tap with insulated athermic handle.
  • Lid in AISI-304 stainless steel with a thickness of 15/10, with balanced spring and anathermic handle/non-heating.
  • Pressure gauge to control the pressure inside the double wall.
  • Manual air release valve to reduce the pressure in the chamber during heating.
  • 30/10 thick stainless steel support structure mounted on height-adjustable steel feet.
  • External walls in fine satin-finished AISI-304 steel, 10/10 thick, and a 15/10 thick AISI-304 stainless steel shelf.

- 2 versions:

  1. Normal version: spring-loaded safety valve set at 0.5 bar.
  2. Autoclave version: Equipped with silicone rubber sealing, lid sealing clips and safety valve set at 0.5 bar.

HEATING
GAS - DIRECT AND DIRECT UNDER PRESSURE MODELS, INDIRECT AND INDIRECT UNDER PRESSURE MODELS:

  • Burners - high-efficiency tubular stainless steel structure.
  • Manual piezoelectric ignition and pilot flame.
  • Smoke exhaust grille.
  • Tap with safety valve and thermocouples (direct version).

INDIRECT ELECTRIC MODELS:

  • Heated by heating elements immersed in Incoloy alloy with adjustable power by means of an energy variator.
  • Safety thermostat that ensures that the machine does not operate in case of overheating or insufficient water.
  • Water control in the double wall with taps and automatic water filling option.
  • Standard operating voltage of 400V-3N50Hz

INDIRECT STEAM MODELS:

  • Heated by steam (from an additional connection) through a valve that allows the steam to be added gradually to the vessel.
  • Indirect heating equipment includes: pressure control in the double wall by means of a safety valve set at 0.5 bar, manual vacuum valve and pressure gauge.

Heating

Model

Catalog N:

Power kW

Directly heated gas

MRG-300

19001273

39

Directly pressure heated gas

MRG-300 A

19003031

39

Indirectly heated gas

MRIG-300

19001421

48

Indirectly pressure heated gas

MRIG-300 A

19003045

48

Indirectly heated electric

MRIE-300

19003082

36

Indirectly pressure heated electric

MRIE-300 A

19001415

36

Indirectly heated steam

MRIV-300

19003087

in the attached file

Indirectly pressure heated steam

MRIV-300 A

19001425

in the attached file

  CODE Power supply Heating Price
Fixed rectangular boiling pans (300L) - MR-300
19003082
Electricity Indirect heating Contact us for a price
Fixed rectangular boiling pans (300L) - MR-300
19001415
Electricity Indirect pressure Contact us for a price
Fixed rectangular boiling pans (300L) - MR-300
19003087
Steam Indirect heating Contact us for a price
Fixed rectangular boiling pans (300L) - MR-300
19001425
Steam Indirect pressure Contact us for a price
Fixed rectangular boiling pans (300L) - MR-300
19001421
Gas Indirect heating Contact us for a price
Fixed rectangular boiling pans (300L) - MR-300
19003031
Gas Direct pressure Contact us for a price
Fixed rectangular boiling pans (300L) - MR-300
19003045
Gas Indirect pressure Contact us for a price
Fixed rectangular boiling pans (300L) - MR-300
19001273
Gas Direct fire Contact us for a price
Model:
MRG-300
Voltage (V/Ph/Hz):
230/1-3N/50-60
Power supply:
  • Steam
  • Electric
  • Gas
Power:
39kW
Sizes:
1200x1270x900 mm
Net weight:
225 kg

Парни казани

Heating:
Direct fire
Power supply :
Gas

Gas - direct (MRG-300_19001273.pdf, 810 Kb) [Download]

Gas - direct - autoclave (MRG-300_A_19003031.pdf, 809 Kb) [Download]

Gas - Indirect (MRIG-300_19001421.pdf, 851 Kb) [Download]

Gas - Indirect - Autoclave (MRIG-300_A_19003045.pdf, 850 Kb) [Download]

El. - Indirect (MRIE-300_19003082.pdf, 941 Kb) [Download]

El. - Indirect - Autoclave (MRIE-300_A_19001415.pdf, 941 Kb) [Download]

Steam - Indirect (MRIV-300_19003087.pdf, 938 Kb) [Download]

Steam - Indirect - Autoclave (MRIV-300_A_19001425.pdf, 938 Kb) [Download]
