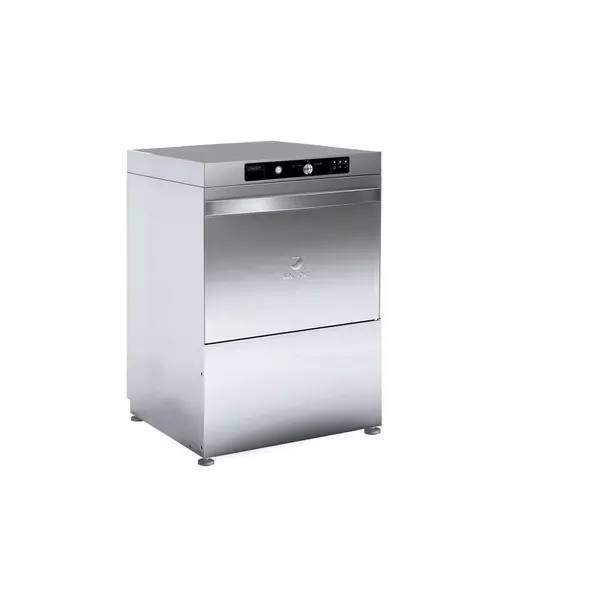

Front-loading dishwasher CO-402 COLD

Възползвайте се от удобството да закупите уреди на изплащане или да финансирате на вноски цялостното оборудване на вашата професионална кухня или перално стопанство. С нашите партньори ще Ви предложим най-добрите условия за изпълнението на вашия проект, без да е необходимо да плащате цялата сума предварително. tbitbi Запитване за лизинг
Fagor
CO-402 COLD

Professional undercounter dishwasher with front loading for 400x400mm baskets. and cold rinse function.

  • Front loading dishwasher - EVO generation.
  • Made of stainless steel.
  • Double-walled door.
  • Double rotating washing and rinsing system, top and bottom, made of stainless steel/Washing and rinsing arms made of stainless steel.
  • Rounded tank for easy washing and draining.
  • Armored stainless steel heating elements in the washing tank and in the rinse tank.
  • Thermostatic temperature control (washing 60°C and rinsing 85°C).
  • Safety thermostat.
  • Built-in rinse aid dispenser.
  • Equipped with a non-return valve.
  • 260 W wash pump.
  • Water consumption of 2.2 liters/cycle.
  • Magnetic safety stop switch when opening the door.
  • IPX4 water protection.
  • Model with electronic control and display for temperature, functions and errors.
  • Electronic programmer with maintenance assistance system.
  • Model for 400 x 400 mm baskets.
  • Washing cycles 90s - 120s - 180s and maximum production of 40 baskets/hour.
  • Useful internal height 270 mm.
  • Tank with a volume of 15 liters, with a heating element of 2 kW.
  • Boiler with a volume of 4 liters, with a heating element of 2.8 kW.
  • Thermal stop system that guarantees a rinsing temperature of 85°C. The standard factory setting is deactivated.
  • Button for optional cold rinse at the end of the cycle.

SUPPLIED ACCESSORIES:

19000792 Basket for 15 utensils, 105x105x130 mm. 1
19082432 Glass basket 400x400x110 mm. 2
19084452 Insert for 11 plates 400x400x110 mm. 1

NOTE

Water pressure:
Minimum: 2 bar = 2 kg/cm2
Maximum: 4 bar = 4 kg/cm2
Water softener:
In case the dishwasher needs to be connected to a purified water supply (water softener) - the local supply must be above 10 HF / 6 HD.

Capacity of boiler:
  • 4л
Capacity of tank:
  • 15л
Clearance:
  • 275мм
Dispenser of detergent:
  • Не
Dispenser of rinse aid:
  • Да
Double isolated door:
  • Да
Double-isolated body:
  • Не
Draining pump:
  • Не
Productivity:
  • 40кг/ч
Rinsing pump:
  • Не
Size of basket:
  • 400/400мм
Suitable for GN1/1:
  • Не
Water consumption:
  • 1-4.5л/цикъл
Power:
3.06kW
