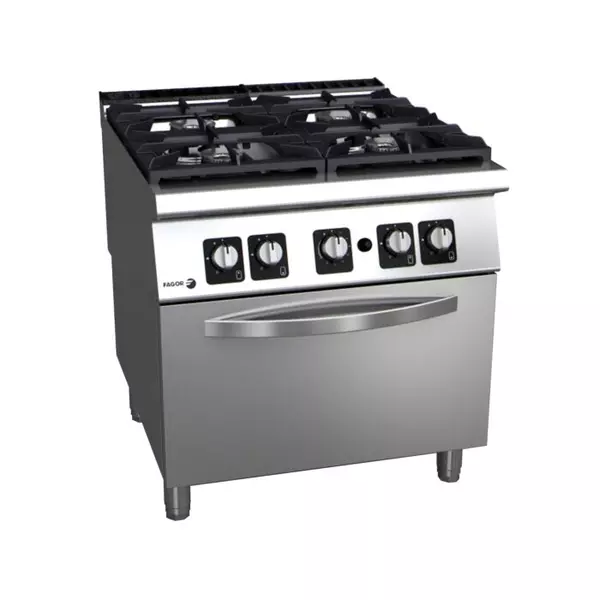

Gas (LPG/NG) cooker with 4 burners and gas oven. LINE 900. Three versions are available according to the different power of the burners, which allows practical adaptation to the cookware used and the different food products:
1) 2 x 5.25kW + 1 x 8.0kW + 1 x 10.2kW;
2) 3 x 8.0kW + 1 x 10.2kW;
3) 4 x 10.2kW.
- Burner dimensions: 5.25 kW (Ø 100 mm); 8.0 kW (Ø 120 mm); 10.2 kW (Ø 140 mm)
- Top with stamped surface, made of AISI-304 stainless steel with a thickness of 2 mm.
- Laser cutting, automatic welding and polishing of the elements.
- Burner grates measuring 397 x 350 mm, which allows the use of large cooking pots.
- The shortened distance of 75 mm between the central teeth of the grates allows the use of pans with a very small diameter (8 cm). This also avoids the risk of the cookware tipping over.
- The hob grates are made of RAAF enamelled cast iron (resistant to acid and alkali products, fire and high temperatures).
- Burners with a double crown made of nickel-plated cast iron, guaranteeing uniform heat distribution from the flame to the bottom of the pans. This avoids heat accumulation at one point and optimizes energy transfer to the product.
- Pilot flame with piezoelectric ignition and low-consumption thermocouples located in the burner body for greater protection.
- Gas conduction provided in flexible stainless steel pipes, facilitating internal manipulation and repair work.
- Control switches placed on a protective base with a system against water penetration.
- High-temperature enamelled cast iron protector, aligned with the hotplates, facilitates maneuverability, increasing the useful work surface.
- Access to components from the front.
OVEN 8.6kW
- Static gas oven for GN 2/1 trays.
- User-friendly controls on the top panel for better ergonomics.
- Stainless steel cooking chamber, ensuring a better level of hygiene.
- Trays are placed laterally for user convenience.
- Three-level guides offer different options for use.
- Guide rails are "U" shaped to prevent trays from tipping over.
- Temperature control by thermostatic valve (125 – 310 °C).
- Heating: Gas: Stainless steel tubular burner (two branches for OP version), with pilot flame, thermocouple and piezo electric ignition.
- The bottom surface of the oven is made of 6 mm cast iron, which guarantees even heat distribution.
- Fiberglass gasket - improves the thermal efficiency of the oven and guarantees durability.
- Removable oven door, which makes repairs easier.
POSSIBLE ACCESSORIES: KORE WHEELS
