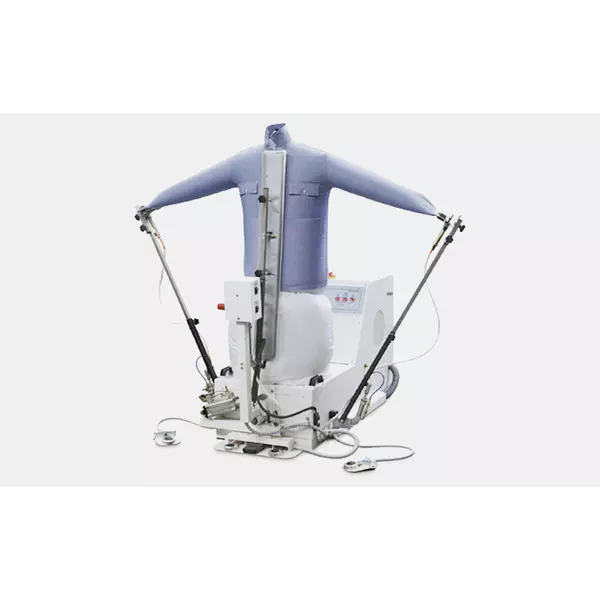

Mannequin for ironing shirts, three-quarter coats and jackets, without steam generator. Requires connection to a central network or external steam generator. Can be installed
with a MAXI-24-15 steam generator.
FEATURES
- Model without steam generator, with the need to connect to an external one.
- Pneumatic tensioners (two) for sleeve holders with independent traction.
- Electronic card with 19 ironing programs (10 programs for automatic work cycle and setting of 9 ironing cycles).
- Heated and pneumatic rear bar that tilts to the side.
- Suction function. Vacuum device by button.
- Mannequin with pneumatic height adjustment.
- Powerful 3CV fan - 3 HP. Pneumatic device for regulating the air from the fan.
- The opening of the arm is manually adjusted.
- Front heated and tilting panel.
- Automatic trolley with photocell for side and back stretch.
- Steam iron connection.
- Air heater from 0° to 350° C.
- Requires compressed air.
- Working air pressure: 5-6 bar.
- Air flow: 20 Nl/min (normal liters/min).
- Electrical connection: 400V III +N.
