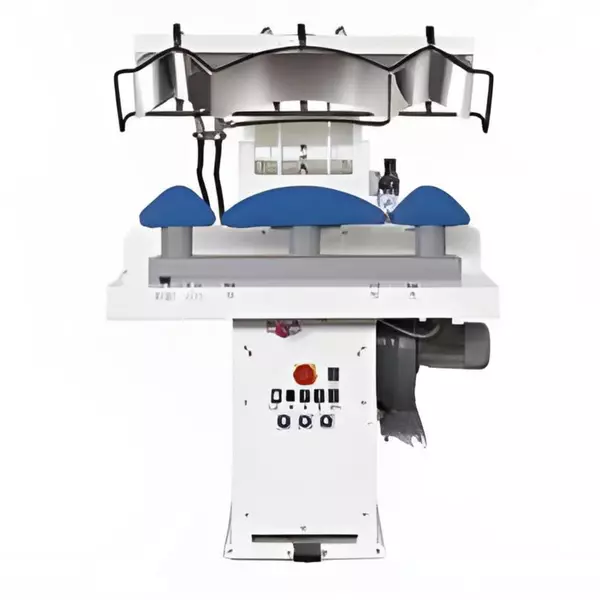

Pneumatic press for collars and cuffs PCP-88

Възползвайте се от удобството да закупите уреди на изплащане или да финансирате на вноски цялостното оборудване на вашата професионална кухня или перално стопанство. С нашите партньори ще Ви предложим най-добрите условия за изпълнението на вашия проект, без да е необходимо да плащате цялата сума предварително. tbitbi Запитване за лизинг

Pneumatic press, models with/without steam generator, air compressor and iron.

2 models:
- PU-88: universal pneumatic machine
- PCP-88: pneumatic machine for collars and cuffs.

  • The lower part of the press has steam in all models, which is injected using a pedal.
  • The upper part also has steam, which is injected with a button.
  • Steam or polished press head in the upper part (the polished head is optional and does not have steam, it is suitable for washing directly from the washing machine).
  • Dimensions of the working surface: 1,180 x 380 x 220mm.
  • The lowering of the head/upper part of the press is controlled by two buttons.
  • All models are equipped with a vacuum system.
  • Connection: 400 V - III+N / 230 V III / 50 Hz.

Model (*)

Code



COMPRESSED AIR LIT/MIN

STEAM CONSUM. KG/H

COMPRESSOR HP





Boiler

kW



Dimenssions

мм

PCP-88

19018895

45,00

14,00

-

-

1.370x1.080x1.250

PCP-88 C

19035798

45,00

14,00

-

12,00

1.370x1.080x1.250

PCP-88 C GC

19035800

45,00

14,00

2,00

12,00

1.370x1.080x1.250

PCP-88 GC

19035799

45,00

14,00

2,00

-

1.370x1.080x1.250

PCP-88 C GC PCH

19086064

45,00

14,00

2,00

12,00

1.370x1.080x1.250

(*) : C : Boiler for steam production - Electrical operation. Automatic water feed and automatic steam production. Power: 12 kW Volume: 16 l. - Air pressure: 6 bar. - Steam pressure: 4.5 bar. GC : Compressor - 2 HP. PCH : Group of iron + pedal



OPTIONS

  • Steam generator - boiler 16 Litres (12 kW).
  • Compressor unit. 2 HP.
  • Group of iron + pedal.
  • Spray gun for steam.
  • Polished upper buck for laundry (not upsteaming).
Power:
12kW

Specs (PU-88_PCP-88.pdf, 331 Kb) [Download]
