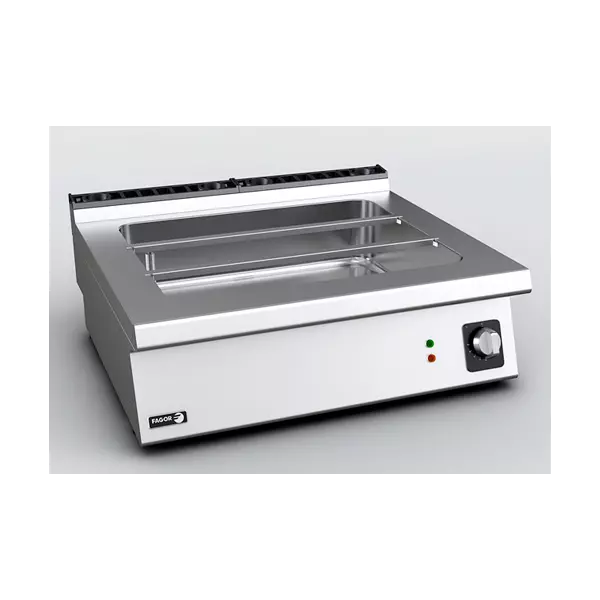

Bain Marie (30L) BM-710

Възползвайте се от удобството да закупите уреди на изплащане или да финансирате на вноски цялостното оборудване на вашата професионална кухня или перално стопанство. С нашите партньори ще Ви предложим най-добрите условия за изпълнението на вашия проект, без да е необходимо да плащате цялата сума предварително. tbitbi Запитване за лизинг

Bain marie with a capacity of 30 liters and a tank size of NG-2/1. The model can be gas (LPG/NG) or electric.

  • Surfaces made of 1.5 mm thick AISI-304 stainless steel.
  • Laser cutting of joints, automatic welding and polishing of the connecting elements. Hidden screws.
  • Tanks/tanks that can be used with different sizes of Gastronorm containers, 150 mm high, and with the following dimensions: The different combinations can be seen in the attached file!

· Semi-module: NG-1/1, with a capacity of 17 liters.
· Full module: NG-2/1, with a capacity of 30 liters.

  • AISI-304 stainless steel sockets integrated into the surface.
  • Gravity drainage: easy drainage by removing the overflow pipe.
  • Thermostatic water temperature control, between 30 and 90 °C.
  • Controls with protective support base and water-proof system (IPX5 protection).

GAS MODELS

  • Insulated combustion chamber that reduces the heating of the components.
  • High-efficiency stainless steel burner located outside the tank.
  • Piezoelectric ignition with pilot flame.
  • Alternative manual ignition.
  • No electrical installation required.

ELECTRICAL MODELS

  • AISI 304 stainless steel heating elements located outside the tank.
  • Safety thermostat.

POSSIBLE OPTIONS: - 230 1N- Transformation A 230 V single-phase - 230 III - A 230 V three-phase transformation without neutral - MARINE - Other machines - Ship transformation - 440 III

Standard equipment:

2 crossbars to support Gastronorm containers.
Containers not included.
SUPPLIED ACCESSORIES: 12134113 Cuvette separator BM9-05 2 pcs.

Gas/

Еl.

Model

Code

LPG I NG

Tank

NG-1/1

Volume L.



Power

kW

Dimenssions

мм

G

BM-G710

19071631

19074727

1

30

6,40

800x730x290

Е

BM-E710

(30728)

19071800

1

30

6,00

800x730x290

Capacity:
  • 30кг

El (BM-E710_19071800.pdf, 736 Kb) [Download]

NG (NG_BM-G710_19074727.pdf, 1,072 Kb) [Download]

LPG (BM-G710_19071631.pdf, 1,072 Kb) [Download]

Configurations (BM_700_2024_MD.pdf, 119 Kb) [Download]
