iKORE combi oven (10x1/1GN) 101 FAGOR CONCEPT

Възползвайте се от удобството да закупите уреди на изплащане или да финансирате на вноски цялостното оборудване на вашата професионална кухня или перално стопанство. С нашите партньори ще Ви предложим най-добрите условия за изпълнението на вашия проект, без да е необходимо да плащате цялата сума предварително. tbitbi Запитване за лизинг
C-101-(E) R
10 х 1/1 GN
68 mm
ElectricGas
Fagor
19078439
Contact us for a price
Need help?02/862 55 66

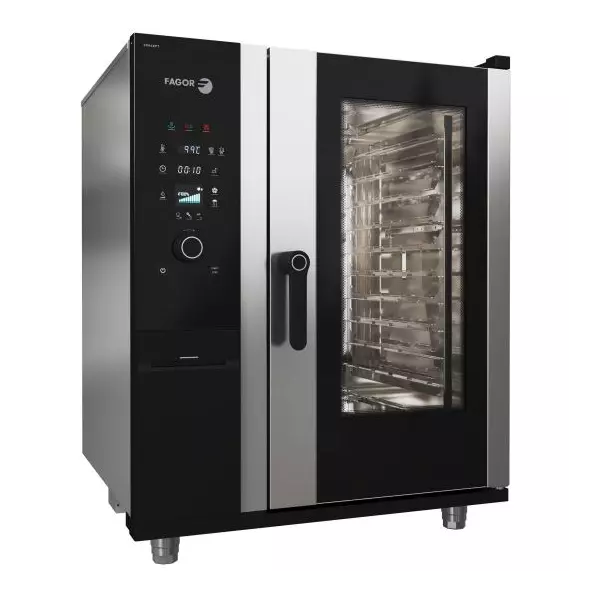

iKORE Concept combi oven for 10 GN 1/1 trays with right opening. Fagor Concept series by Fagor is designed for the more conservative and faithful to traditional gastronomic methods, but looking for maximum efficiency quickly and easily.

  • 4 main versions of the model are available depending on the steam generation system PureSteam (with steam generator) or DirectSteam (injection) and depending on the washing system (Spray mode or iWashing). Each of the versions can be with electric or gas (propane butane / natural gas) power supply and with factory-built S - shaped retractable shower.

FUNCTIONS:

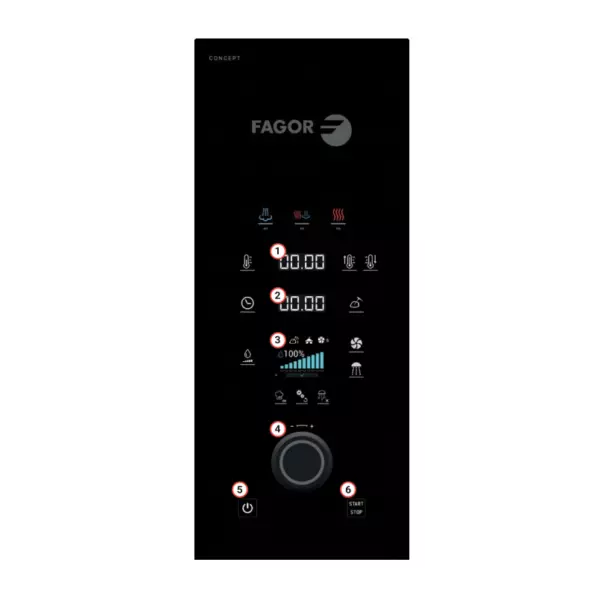

  • FagorDial: 2.8'' digital display, rotary knob / potentiometer / and push function for configuring and confirming the entered parameters;
  • ClimaControl: 1) Humidity management and control through direct measurement with a humidity sensor. 2) 10% regulation capacity;
  • Fagor Recipe Center: 100 factory-set and culinary-tested recipes. Storage capacity for more than 100 nine-step recipes;
  • Air and water cooling (rapid chamber cooling function);
  • Cooking modes: low steam temperature 30-98º, steam 99º, super steam 100-130º, mixed 20-300º and convection 20-300º;
  • Drying the chamber for crispy baked goods;
  • DeltaT cooking - function, delicate cooking;

DIRECTSTEAM VERSIONS: Steam generation by spraying/injecting water into the turbine, atomizing the water and converting it into steam.

PURESTEAM VERSIONS: Higher steam saturation in the chamber compared to the injection version. Pure steam generator with automatic filling function. Impurities in the water are deposited in the boiler/generator, facilitating the maintenance of the combi oven. The steam generator is equipped with a scale detector and a semi-automatic scale removal system. Automatic and adjustable emptying of the generator every 24 hours of cooking.

CONTROLS:

  • Languages: 5;
  • Possibility to configure the tone, volume and contrast of the screen;
  • Melodies: 8;
  • Power supply, internet network and language settings.

EQUIPMENT FEATURES:

  • Stop/start function;
  • EZ-sensor. internal four-point temperature probe;
  • Temperature sensor positioning aid;
  • Manual steam injection;
  • Automatic drying system;
  • Automatic humidification system;
  • Variable humidification with 5 levels;
  • 6 programmable air circulation speeds (from 1400 rpm to turbine stop);
  • Possibility to switch from ºC to ºF;
  • Display of actual and set values;
  • Delayed programming;
  • Possibility of selecting 1/2 power;
  • Automatic adaptation to the characteristics of the installation site (altitude, etc.), including initial self-test;
  • Automatic boiling point adjustment;
  • Removable fan cover;
  • Integrated turbine brake for increased safety;
  • HA-Control: two-way turbine that ensures intelligent even heat distribution;
  • Automatic fan rotation reversal system;
  • Triple-glazed, ventilated cooking chamber door (all except 0623 and Kompact);
  • Special heat-reflecting coating and hinges on the inner glass for easy cleaning;
  • LED lighting in the cooking chamber;
  • HOLD-OPEN DOOR systems (3 door locking positions for user safety);
  • Door sensor for contactless unlocking;
  • Easily replaceable sealing insert;
  • Internal and external material: stainless steel AISI 304 (polished internal mirror).

WASHING SYSTEM:

  • MODELS WITH BASIC (Spray mode) washing system (simple and economical)

Washing programs: - 2 basic cleaning programs (spray) - 1 rinsing program
Possibility to activate softening of dirt during the cleaning process
Possibility to activate drying during the cleaning process
Indication of cleaning status and remaining time

  • MODELS WITH iWashing (environmentally and economically efficient)

Choice of intelligent washing systems iWashing Solid or iWashing Liquid
Washing programs: - 1 basic cleaning program (spray) - 3 automatic cleaning programs. 1 rinsing program. 1 polishing program
Possibility to activate dirt softening during the cleaning process
Possibility to activate drying during the cleaning process
Indication of cleaning status and remaining time

CERTIFICATION AND INSTALLATION SYMBOLS:

  • EC declaration of conformity;
  • EC declaration of conformity for gas;
  • CB safety;
  • IPX5 protection against splashes and jets of water;
  • Height-adjustable feet (all models except 0623 and Kompact);
  • Online monitoring and maintenance application (self-diagnosis and error warnings);
  • Logging App: - History of cooking cycles; - History of displayed errors;

SPECIFIC OPTIONS

Capacity (standard) - 10 racks for GN1/1 trays

  • Rail spacing - 68 mm
  • Electrical power 18.6 kW; Voltage (380-415V 3N; 50/60 Hz)
  • Gas models: power 0.83 kW / 18 kW; (230V 1N; 50 Hz)
  • Dimensions: Width 895 mm; Depth (with handle) 817 mm (883 mm); Height (with hinges): 1117 mm (1149 mm)
  • Dimensions of gas models with generator: Depth (with handle) 922 mm (988 mm)
  • Net weight: ~139 Kg (electric) and ~162 Kg (gas)
  • Door opening: R right
  • Washing system: SW-IWASHING SOLID, iWash Liquid (liquid detergent washing system can be ordered additionally)
  • Shower: Versions with/without S - shaped retractable shower
  • SOUS VIDE & THERMAL PROBE: NO
  • INTERNET CONNECTION: NO

OPTIONS:

  • Ask for different voltages
  • Reversed opening with door hinge on the left side
  • Washing system LW* Liquid iWash
  • Models with factory-installed S - shaped retractable shower

  CODE Humidity Washing Power supply Integrated shower Price
iKORE combi oven (10x1/1GN) 101 FAGOR CONCEPT
19107361
DirectSteam (Injection) Spray mode Electricity Yes Contact us for a price
iKORE combi oven (10x1/1GN) 101 FAGOR CONCEPT
19107362
DirectSteam (Injection) Spray mode Gas Yes Contact us for a price
iKORE combi oven (10x1/1GN) 101 FAGOR CONCEPT
19088210
DirectSteam (Injection) Spray mode Gas No Contact us for a price
iKORE combi oven (10x1/1GN) 101 FAGOR CONCEPT
19107363
DirectSteam (Injection) iWash Solid Electricity Yes Contact us for a price
iKORE combi oven (10x1/1GN) 101 FAGOR CONCEPT
19073625
DirectSteam (Injection) iWash Solid Electricity No Contact us for a price
iKORE combi oven (10x1/1GN) 101 FAGOR CONCEPT
19107364
DirectSteam (Injection) iWash Solid Gas Yes Contact us for a price
iKORE combi oven (10x1/1GN) 101 FAGOR CONCEPT
19088211
DirectSteam (Injection) iWash Solid Gas No Contact us for a price
iKORE combi oven (10x1/1GN) 101 FAGOR CONCEPT
19096891
PureSteam (boiler) Spray mode Electricity Yes Contact us for a price
iKORE combi oven (10x1/1GN) 101 FAGOR CONCEPT
19098465
PureSteam (boiler) Spray mode Electricity No Contact us for a price
iKORE combi oven (10x1/1GN) 101 FAGOR CONCEPT
19096893
PureSteam (boiler) Spray mode Gas Yes Contact us for a price
iKORE combi oven (10x1/1GN) 101 FAGOR CONCEPT
19107358
PureSteam (boiler) Spray mode Gas No Contact us for a price
iKORE combi oven (10x1/1GN) 101 FAGOR CONCEPT
19072806
PureSteam (boiler) iWash Solid Electricity Yes Contact us for a price
iKORE combi oven (10x1/1GN) 101 FAGOR CONCEPT
19107359
PureSteam (boiler) iWash Solid Electricity No Contact us for a price
iKORE combi oven (10x1/1GN) 101 FAGOR CONCEPT
19088212
PureSteam (boiler) iWash Solid Gas Yes Contact us for a price
iKORE combi oven (10x1/1GN) 101 FAGOR CONCEPT
19107360
PureSteam (boiler) iWash Solid Gas No Contact us for a price
iKORE combi oven (10x1/1GN) 101 FAGOR CONCEPT
19078439
DirectSteam (Injection) Spray mode Electricity No Contact us for a price
HACCP:
  • Yes
Model:
C-101-(E) R
Voltage (V/Ph/Hz):
380-415/3N/50-60
Wi-Fi:
No
Capacity :
  • 10 х 1/1 GN
Spacing between rack rails:
68 mm
IPX:
5
Power supply:
  • Electric
  • Gas
Power:
18.6kW
Touchscreen:
FagorDial: 2.8''
Self-cleaning:
  • Yes
Heating:
  • Yes
Fast cool down:
  • Yes
Programming:
  • Yes
Reversible fan:
  • Yes
Speed of fan:
  • 6
Multi-Tray:
  • No
Sizes:
895x817x1117 mm
Net weight:
138 kg
Humidity :
DirectSteam (Injection)
Power supply :
Electricity
Washing
:
Spray mode
Integrated shower:
No
