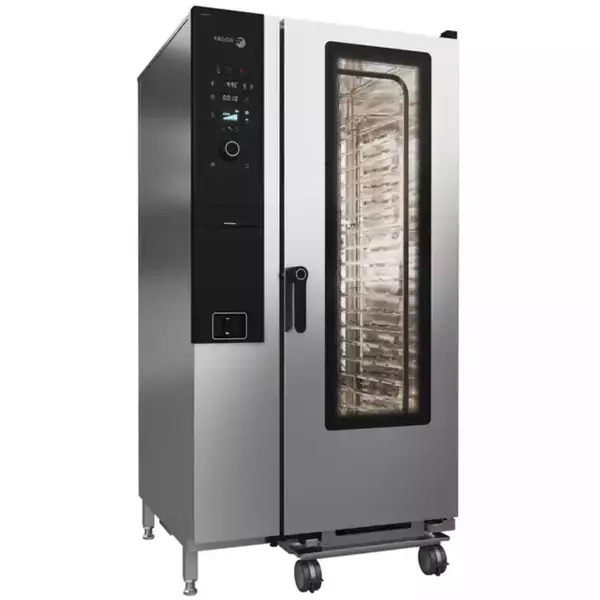

iKORE Concept combi oven for 20 GN 1/1 trays, with right opening and trolley.
- There are 4 main versions of the model available depending on the steam generation system PureSteam (with steam generator) or DirectSteam (injection) and depending on the washing system Spray mode or iWash. Each version can be electric or gas (propane butane or natural gas), with or without a built-in S - shaped retractable shower.
FUNCTIONS:
- FagorDial: 2.8'' digital display, rotary knob and push-button function for configuring and confirming the entered parameters;
- ClimaControl: Humidity management and control through direct measurement with a humidity sensor with 10% accuracy;
- Fagor Recipe Center: 100 factory-set and culinary-tested recipes. Storage capacity for more than 100 nine-step recipes;
- Air and water cooling (quick chamber cooling function);
- Cooking modes: low steam temperature 30-98º, steam 99º, super steam 100-130º, mixed 20-300º and convection 20 -300º;
- Drying the chamber for crispy baked goods;
- Delta cooking - function, delicate cooking;
DIRECTSTEAM VERSIONS: Steam generation by spraying/injecting water into the turbine, atomizing the water and turning it into steam.
PURESTEAM VERSIONS: Higher steam saturation in the chamber compared to the injection version. Pure steam generator with automatic filling function. Impurities in the water are deposited in the boiler/generator, facilitating the maintenance of the combi steamer. The steam generator is equipped with a scale detector and a semi-automatic scale removal system Automatic and adjustable emptying of the generator every 24 hours of cooking.
CONTROLS:
- Languages: 5
- Possibility to configure the tone, volume and contrast of the screen;
- Tone: 8;
- Power settings, internet network and language.
EQUIPMENT FEATURES:
- Stop / start function;
- EZ-sensor. internal four-point temperature probe;
- Temperature sensor positioning aid;
- Manual steam injection;
- Automatic drying system;
- Automatic humidification system;
- Variable humidification with 5 levels;
- 6 programmable air circulation speeds (from 1400 rpm to turbine stop);
- Possibility to switch from ºC to ºF;
- Display of actual and set values;
- Delayed programming - JIT (just in time);
- Possibility of selecting 1/2 power;
- Automatic adaptation to the characteristics of the installation site (altitude, etc.), including initial self-test;
- Automatic boiling point adjustment;
- Removable fan cover;
- Integrated turbine brake for increased safety;
- HA-Control: two-way turbine that ensures intelligent even heat distribution;
- Automatic fan rotation reversal system;
- Triple-glazed, ventilated cooking chamber door (all except 0623 and Kompact);
- Special heat-reflecting coating and hinges on the inner glass for easy cleaning;
- LED lighting in the cooking chamber;
- HOLD-OPEN DOOR systems (3 door locking positions for user safety);
- Door sensor for contactless unlocking;
- Easily replaceable sealing insert;
- Internal and external material: stainless steel AISI 304 (polished internal mirror).
CERTIFICATION AND INSTALLATION SYMBOLS:
- EC Declaration of Conformity;
- EC Declaration of Conformity for Gas;
- CB Safety;
- IPX5 protection against splashes and jets of water;
- Height-adjustable feet (all models except 0623 and Kompact);
- Online Monitoring and Maintenance App (self-diagnosis and error warnings);
- Logging App: - Cooking Cycle History; - Error Display History;
WASHING SYSTEM:
MODELS WITH BASIC (Spray mode) washing system (simple and economical)
- Washing programs: - 2 basic cleaning programs (spray) - 1 rinsing program
- Possibility to activate softening of dirt during the cleaning process
- Possibility to activate drying during the cleaning process
- Indication of cleaning status and remaining time
MODELS WITH iWashing (ecological and economical)
- Choice of intelligent washing systems iWashing Solid (as standart) or iWashing Liquid (as option)
- Washing programs: - 1 basic cleaning program (spray) - 3 automatic cleaning programs. 1 rinsing program. 1 polishing program
- Possibility to activate dirt softening during the cleaning process
- Possibility to activate drying during the cleaning process
- Indication of cleaning and remaining time
SPECIFICATION:
- Capacity (standard) - 20 racks for GN1/1 trays, "T" type trolley
- Rail spacing - 63 mm
- Power supply (standard): - Electrical power 37.2 kW; Voltage (380-415V 3N; 50/60 Hz); - Gas models: power 1.55 kW / 36 kW; (230V 1N; 50 Hz)
- Dimensions: Width 935 mm; Depth (with support) 966 mm (1032 mm); Height (with hinges): 1840 mm (1871 mm)
- Net weight: ~272.5 Kg (electric) and ~309Kg (gas)
- Door opening: R right
- Shower: Versions with/without S-shaped retractable shower
- SOUS VIDE & THERMAL PROBE: NO
- INTERNET CONNECTION: NO
OPTIONS:
- Ask for different voltages
- Washing system LW* Liquid iWash - washing with liquid detergent
- S-shaped retractable shower
