Modular rack conveyor 225 racks/hour - CCO-225

Възползвайте се от удобството да закупите уреди на изплащане или да финансирате на вноски цялостното оборудване на вашата професионална кухня или перално стопанство. С нашите партньори ще Ви предложим най-добрите условия за изпълнението на вашия проект, без да е необходимо да плащате цялата сума предварително. tbitbi Запитване за лизинг
Fagor
1170471

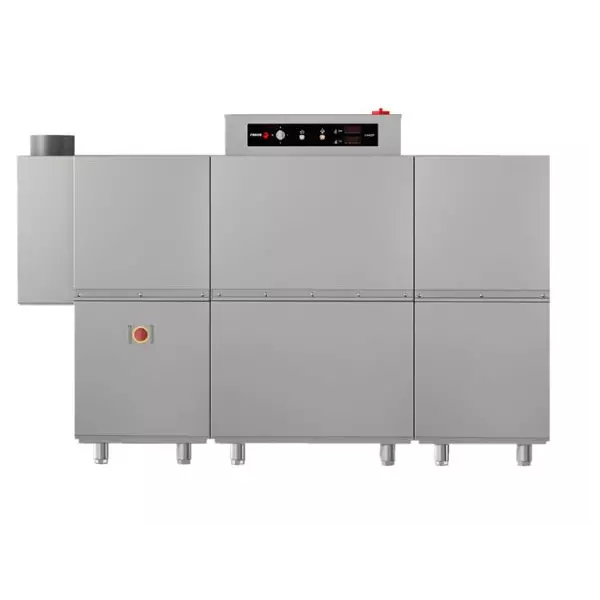

Modular rack conveyor dishwasher, maximum capacity 225 baskets/hour. Modular dishwasher Concept, composed of different modules, assembled together, which perform the different operations that make up the washing process.

The model can be ordered with left/right inlet and connection to hot/cold mains water.

  • All the main parts of the machine are made of AISI-304 stainless steel anti-corrosion: tanks, washing and rinsing arms, nozzles, doors, basket transport system, boiler and metal pipes.
  • Double panel door opening upwards.
  • AISI-304 stainless steel tank filters, easy to access and remove for cleaning.
  • Safety filter for the suction pump.
  • Rinse boiler with thermal insulation.
  • Easy access for installation.
  • Electrical panel designed for easy connection of liquid and solid detergent dispensers, rinse aid, limit switches, additional emergency stop button.
  • Wash and rinse arms, easily removable as a set for cleaning, with a plug on each arm, providing access for cleaning from the inside.
  • Rinse nozzles easily removable and replaceable.
  • Electronic speed control system using a frequency switch.
  • Configurable electronic temperature control: Wash (50 - 65 °C) - Rinse (70 - 85 °C)
  • Rinse at 85 °C. System preventing the machine from operating before reaching the temperature.
  • Pressure regulator for controlling the water flow.
  • Built-in emergency stop button.
  • Additional anti-jamming system on the inlet, mounted on the AS-260 (additional splash protection module), as standard.
  • Door open blocking system.
  • IPX4 water protection.
  • Conveyor carriage blockage detection system and automatic reverse function.
  • Module with pre-rinse program with cold water, with 3 upper and 3 lower washing branches.
  • High-performance washing system with 5 upper and 5 lower washing branches.
  • 3 washing programs: intensive 140 baskets/h (according to hygiene standard DIN10534), medium - 205 baskets/h and high capacity - 270 baskets per hour.
  • Pre-rinse and wash, both programs are double-effect, in models 180, 225 and 270.
  • Triple-effect pre-rinse and double-effect wash in model 320.
  • Energy-saving system: reduces consumption by keeping the pumps running and switching the heating from rinse mode to standby mode (70 °C).
  • Automatic timer that deactivates the conveyor motor after a preset period of inactivity (10 minutes).
  • Energy saving system during washing: the process does not start until the conveyor line detects the passage of a basket.
  • Rinse saving system. Rinsing stops when the basket has left the line, saving water and energy.
  • Limit switch included.

Accessories included:

  • 2 main baskets, CT-10 (500/500/110mm.)
  • 2 baskets for 16/18 plates CP-16/18 (500/500/110mm)
  • 1 basket for 16 cups CV-16/105 (with a diameter of 110 mm and a height of 105 mm)
  • 1 basket for cutlery with a solid base CT-10 R

OPTIONS: - Electrical transformation to 230V three-phase without neutral (230V 3 ~) - Electrical transformation to marine version (440V 3~ 60 Hz.) - Drying tunnel - Additional splash guard (at the inlet) - Additional splash guard (at the outlet).

NOTE:

Water connection: It is recommended to introduce sanitary water into the dishwashers, with a temperature of 50 - 60 ºC.
Water pressure: Minimum: 2 bar = 2 kg/cm2 Maximum: 4 bar = 4 kg/cm2 Water softener: In case of connecting the machines to a water softener, the local supply must be above 10 HF / 6 HD.



Clearance:
  • 510/390(h)мм
Productivity:
  • 26кг/ч
Size of basket:
  • 500/500мм

Right, cold water (CCO-225_D_CW_19048120.pdf, 1,080 Kb) [Download]

Right, hot water (CCO-225_D_HW_19048212.pdf, 1,078 Kb) [Download]

Left, cold water (CCO-225_I_CW_19048119.pdf, 1,079 Kb) [Download]

Left, hot water (CCO-225_I_HW_19048595.pdf, 1,078 Kb) [Download]
