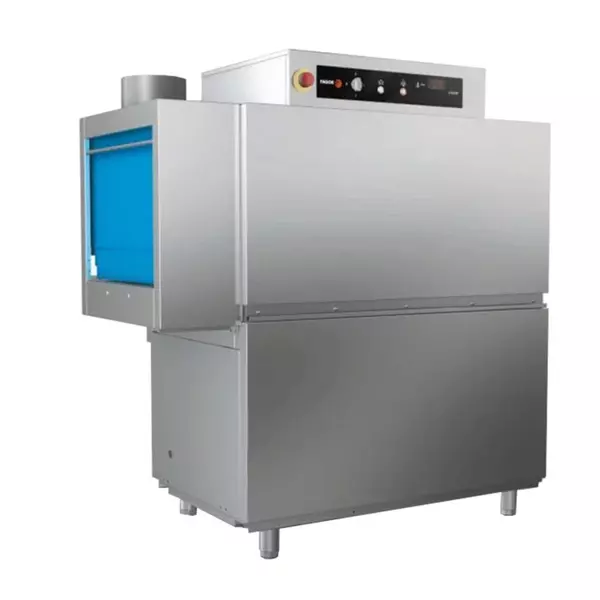

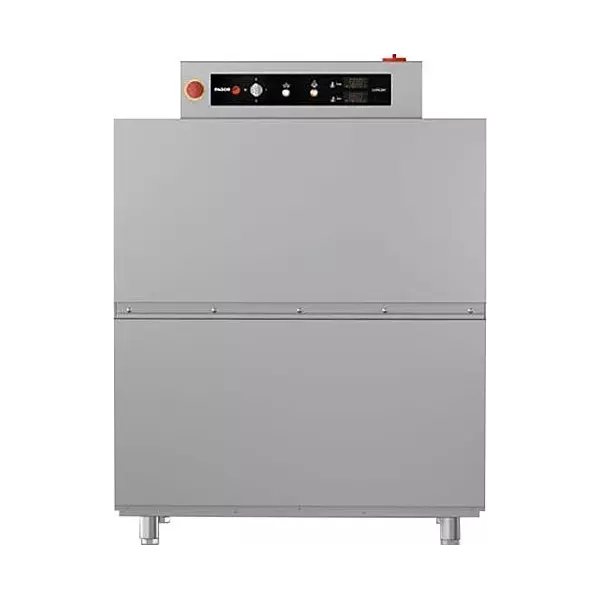

Rack conveyor 160 racks/hour CCO-160

Възползвайте се от удобството да закупите уреди на изплащане или да финансирате на вноски цялостното оборудване на вашата професионална кухня или перално стопанство. С нашите партньори ще Ви предложим най-добрите условия за изпълнението на вашия проект, без да е необходимо да плащате цялата сума предварително. tbitbi Запитване за лизинг
Fagor
2181705487, 2181705580, 40121

Compact rack conveyor 160 racks/hour.

The model can be ordered with left/right entrance and connection to hot/cold water from the mains.

  • All main parts of the machine are made of AISI-304 stainless steel anti-corrosion: tanks, washing and rinsing arms, nozzles, doors, basket transport system, boiler and metal pipes.
  • Upward opening double panel door.
  • AISI-304 stainless steel tank filters, easy to access and remove for cleaning.
  • Safety filter for the suction pump.
  • Rinsing boiler with thermal insulation.
  • Easy access for installation.
  • Solenoid valve located on one side (no need to remove panels to connect the machine).
  • Electrical panel designed for easy connection of liquid and/or solid detergent dispensers, additional emergency stop button, etc.
  • Washing and rinsing arms (4 upper and 4 lower), which are easily removed as a set for cleaning, with a plug on each arm, providing access for cleaning from the inside.
  • Rinsing nozzles easily removable and replaceable.
  • Electronic speed control system using a frequency switch.
  • Configurable electronic temperature control: Washing (50 - 65 °C) Rinsing (70 - 85 °C)
  • Thermostop system - Guaranteed rinsing at 85 °C.
  • Pressure regulator for flow control.
  • Built-in emergency stop button.
  • Additional protection system against jamming at the inlet (optional). Mounted on an additional AS-260 module (purchased separately).
  • Door open blocking system.
  • IPX4 water protection system.
  • Conveyor trolley blockage detection system and automatic reverse function.
  • 3 wash programs: deep wash, medium and high capacity. (80, 100 and 120 baskets/hour.)
  • Double effect rinsing.
  • Energy saving system: reduces consumption by keeping the pumps running and switching the heating from rinse mode to standby mode (70 °C).
  • Automatic timer that deactivates the conveyor motor after a preset period of inactivity (10 minutes).
  • Energy saving system during washing: the process does not start until the conveyor line detects the passage of a basket.
  • Rinse saving system. Rinsing stops when the basket has left the line, saving water and energy.
  • Limit switch included.

Included equipment:

  • 2 main baskets, CT-10
  • 2 plate baskets CP-16/18,
  • 1 glass basket CV-16/105,
  • 1 cutlery basket CT-10 R

OPTIONS: - Electrical transformation to 230V three-phase without neutral (230V 3 ~) - Electrical transformation to marine version (440V 3~ 60 Hz.) - Drying tunnel - Additional splash guard (at the inlet) - Additional splash guard (at the outlet).

NOTE:

Water connection: It is recommended to introduce sanitary water into the dishwashers, with a temperature of 50 - 60 ºC.
Water pressure: Minimum: 2 bar = 2 kg/cm2 Maximum: 4 bar = 4 kg/cm2 Water softener: In case of connecting the machines to a water softener, the local supply must be above 10 HF / 6 HD.

Capacity of tank:
  • 50л
Productivity:
  • 90кг/ч
Size of basket:
  • 500/500мм
Suitable for GN1/1:
  • Да
Water consumption:
  • 400л/цикъл

Right, cold water (CCO-160_D_CW_19048254.pdf, 629 Kb) [Download]

Right, hot water (CCO-160_D_HW_19048255.pdf, 629 Kb) [Download]

Left, cold water (CCO-160_I_CW_19048231.pdf, 629 Kb) [Download]

Left, hot water (CCO-160_L_HW_19048233.pdf, 629 Kb) [Download]
