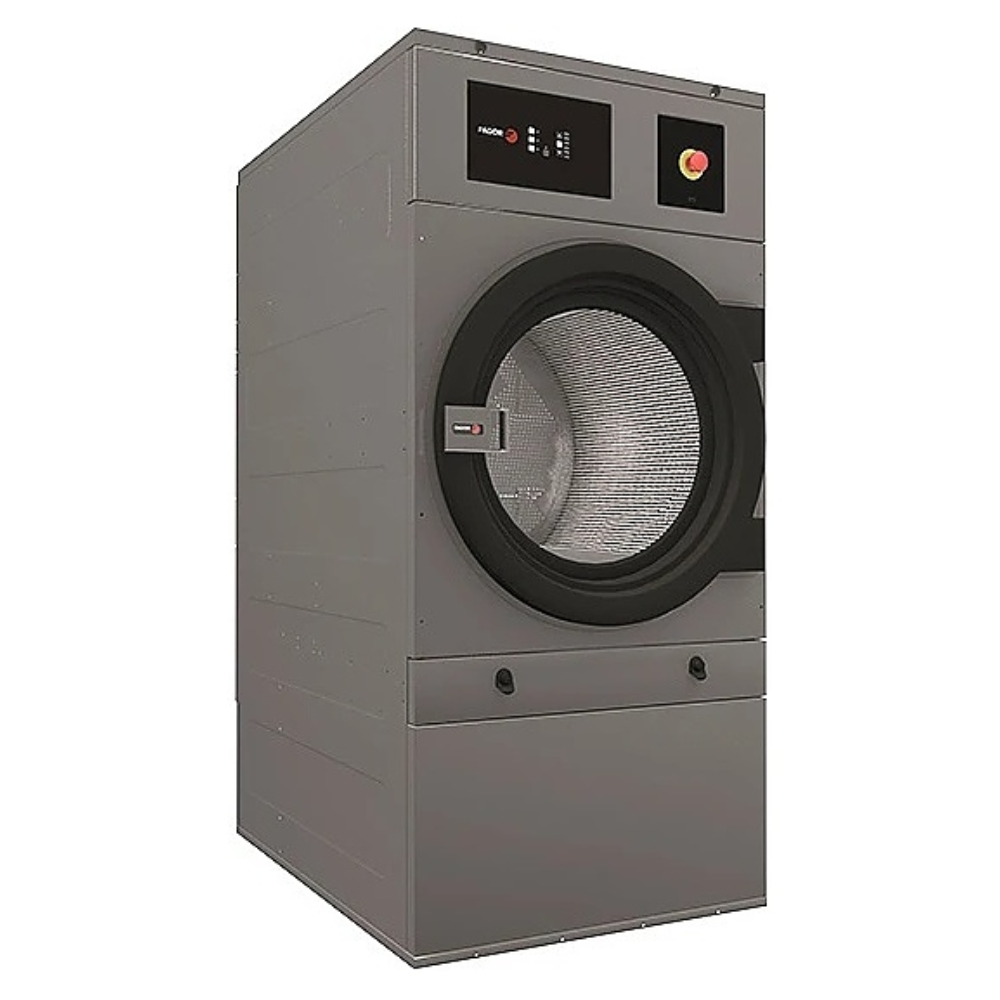

Industrial Tumble dryer SR-14 M/ CONCEPT

Възползвайте се от удобството да закупите уреди на изплащане или да финансирате на вноски цялостното оборудване на вашата професионална кухня или перално стопанство. С нашите партньори ще Ви предложим най-добрите условия за изпълнението на вашия проект, без да е необходимо да плащате цялата сума предварително. tbitbi Запитване за лизинг
14kg
SteamElectricGas
Fagor
SR-14 M

Professional dryer with a capacity of 15kg, drum diameter: Ø 750mm, door diameter: Ø 574mm.

According to the heating system, the model can be electric, gas or steam.

  1. E electric: Resistance heating.
  2. G gas: Gas heating system. Ignition system.
  3. S steam: Steam heating. External generators. Steam inlet pressure: 6-9 bar.

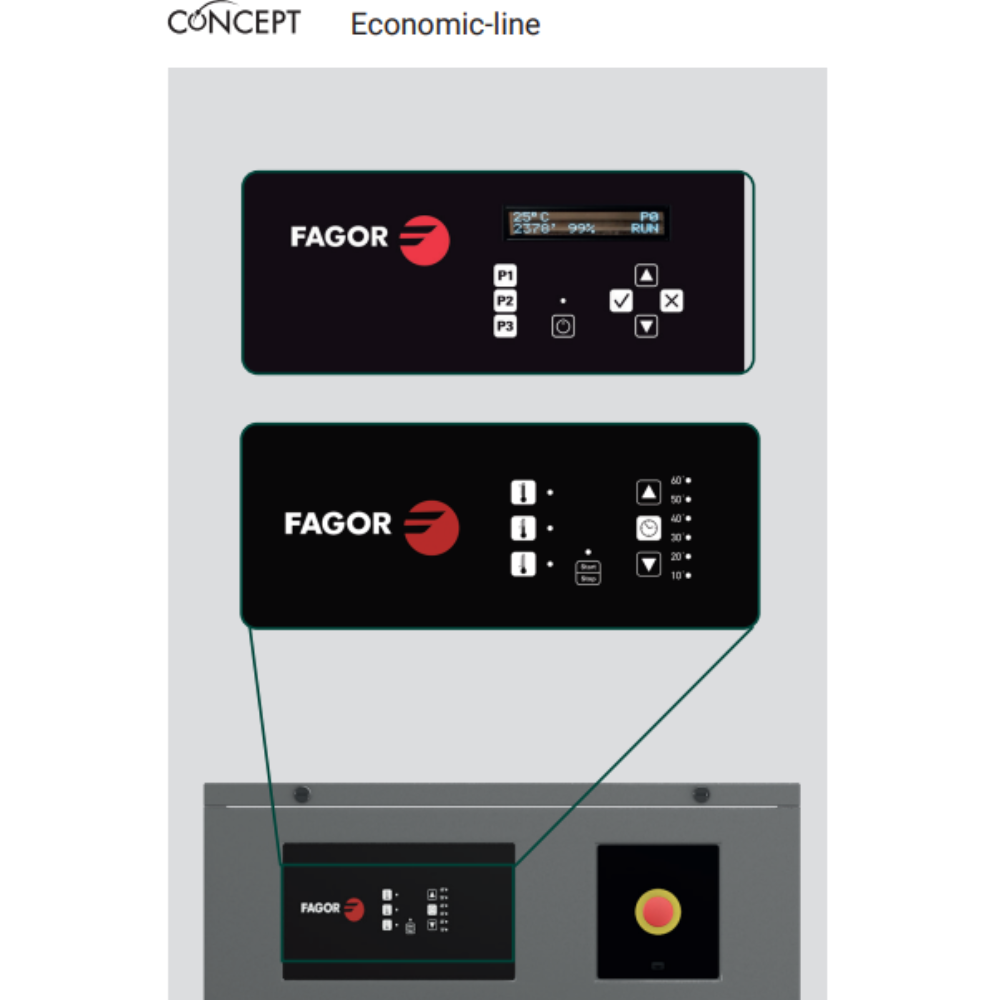

  • Easy control processor (M) with time and temperature control. The electronic brain included in the Concept dryer range has buttons that control the temperature (high, medium and low) and time in a simple, intuitive and economical way. There is also the possibility of programming the machine using an external console.
  • External steel casing with a gray coating (skinplate) of stainless steel, easy to clean.
  • Stainless steel drum.
  • Axial-radial airflow leading to greater drying efficiency.
  • Drum with stamped perforations for gentle treatment of fabrics.
  • Lint filter in the lower part, more ergonomic, larger.
  • Automatic reverse rotation of the drum.
  • Frequency inverter for smoother operation.
  • Ergonomic door with large opening and double glazing option.
  • Anti-wrinkle system for laundry during drying.
  • Standard gas models for propane (natural gas on request)
  • CE certificate.

OPTIONS

  • Double glass on the door.
  • Opposite door opening.
  • Rear panel with external air + filter.
  • Lint filter with 0.6mm mesh (standard is 0.3mm).
  • Lint filter with 1.2mm mesh (standard is 0.3mm).
  • Stainless steel front and side panels.
  • Stainless steel front panel.
  • Stainless steel steam battery.
  • Low pressure steam coil.
  • Reduced power (12kw instead of 18kw) for SR-14.
  • Seaworthy wooden packaging.
  • Other voltages available.
  • Self-service payment systems.
E/G/S        Model Code

Production kg/h

 power kw
Ел. SR-14 М Е

 19084974

29 18,67
Газ SR-14 М G   19084975 33 0,67
Пара SR-14 М S 19084976 29 0,67


WHY NO PRICE?
Why don’t we set prices for all our appliances?
We pride ourselves on knowing each product inside and out, and with this wealth of experience we are able to advise you on the best professional laundry appliance solutions for you. Contact us: speaking to us gives you access to expert advice and the most competitive prices. We can often beat market prices thanks to our relationships with manufacturers and suppliers. Tell us what you need and let us see what we can do for you. For the best prices and a better overall service, contact us today.

Fire care system:
  • No
Green flow system:
  • No
iDry:
  • No
Load capacity:
  • 14kg
Mixed flow:
  • Yes
MP Control:
  • No
Reversible drum:
  • Yes
Soft touch:
  • Yes
Total flow:
  • No
Volume of drum:
  • 270L
Power supply:
  • Steam
  • Electric
  • Gas

Specs (SR-11_14_M.pdf, 337 Kb) [Download]

Characteristics by range (Dryers_range.pdf, 174 Kb) [Download]
