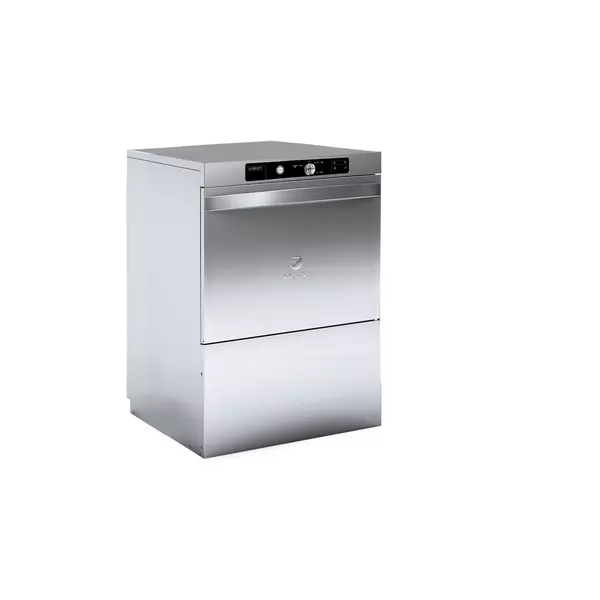

Front-loading dishwasher CO-500

Възползвайте се от удобството да закупите уреди на изплащане или да финансирате на вноски цялостното оборудване на вашата професионална кухня или перално стопанство. С нашите партньори ще Ви предложим най-добрите условия за изпълнението на вашия проект, без да е необходимо да плащате цялата сума предварително. tbitbi Запитване за лизинг
Fagor
040054, 040036, 040053, 040084

Professional undercounter dishwasher with front loading and easy operation.

DESCRIPTION :

  • Front loading dishwashers - EVO Generation.
  • Made of stainless steel.
  • The entire body of the machine is double-walled.
  • Counterweight door with stainless steel hinges and double spring.
  • Undercounter machine, can be positioned under work surfaces with a height of 850 mm.
  • Double rotating washing and rinsing system, top and bottom, made of stainless steel.
  • Rounded tank to facilitate washing and drainage.
  • Armored stainless steel heating elements in the washing tank and in the rinsing boiler.
  • Useful internal height 380 mm.
  • Suitable for GN 1/1 trays.
  • Model with baskets measuring 500x500mm.
  • Washing cycles: 120 sec.
  • Thermostatic temperature control (wash 60°C and rinse 85°C).
  • 600 W wash pump with SOFT-START.
  • 7 l boiler with 2.8 kW heating element.
  • 2.4 l water consumption per cycle.
  • Built-in rinse aid dispenser.
  • Magnetic safety stop switch when opening the door.
  • Safety thermostat - Model for 500 x 500 mm baskets.
  • Theoretical maximum production of 30 baskets/hour.
  • 20 l tank with 2.8 kW heating element.
  • Filter in the wash tank.
  • IPX4 water protection.
  • Thermal shutdown system that guarantees a rinse temperature of 85°C. The standard factory setting is deactivated.

POSSIBLE OPTIONS : - Electrical transformation to marine version (440V 3~ 60 Hz.)

POSSIBLE ACCESSORIES : - DISHWASHER BASKETS - CUP BASKETS - WATER SOFTENER - EVO STANDS - VARIOUS EVO KITS - STANDS

ACCESSORIES SUPPLIED:

19000484 Glass basket 500x500x110 mm. 1
19000487 Basket for 16-18 plates 500x500x110 mm. 1
19000792 Basket for 15 utensils 105x105x130 mm. 2

NOTE:

Water connection: It is advisable to introduce sanitary water in the dishwashers, with a temperature of 50 - 60 ºC. Water pressure: Minimum: 2 bar = 2 kg/cm2 Maximum: 4 bar = 4 kg/cm2

Water softener: All glass / dishwashers should be connected to a treated water supply when the local supply is over 10 HF / 6 HD. Any issues derived from a bad installation that don´t meet with the indicated conditions will not be considered as a warranty

Capacity of boiler:
  • 7л
Capacity of tank:
  • 20л
Clearance:
  • 380мм
Dispenser of detergent:
  • Да
Dispenser of rinse aid:
  • Да
Double isolated door:
  • Да
Double-isolated body:
  • Да
Draining pump:
  • Да
Productivity:
  • Некг/ч
Rinsing pump:
  • Не
Size of basket:
  • 500/500мм
Suitable for GN1/1:
  • Да
Water consumption:
  • 4.20л/цикъл
Power:
6.2kW

Basic model (CO-500_19073532.pdf, 451 Kb) [Download]

Drainage pump (CO-500_B_19075467.pdf, 452 Kb) [Download]

Peristaltic detergent dozer (CO-500_DD_19075468.pdf, 452 Kb) [Download]

Drainage pump and peristaltic detergent dozer (CO-500_B_DD_19075469.pdf, 453 Kb) [Download]
