Fagor
WREC-1000

Water recovery system suitable for industrial washing machines - 1000 liters capacity per tank.

  • Water savings up to 70%.
  • 1, 2 or 3 WREC-1000 tanks can be combined and connected.
  • The tanks can be mounted on the side or at a height using an optional platform
  • Capacity 1000 liters.
  • For washing machines with a capacity of 35 to 120 kg.
  • Easy to install with washing machines equipped with Touch Control TP2.
  • Possibility to select and program washing phases to be stored in the tank's memory.
  • High-density polyethylene tank with external reinforced structure with galvanized steel.
  • Rounded corners on the inside of the tank, which prevents dirt accumulation and facilitates cleaning.
  • The tanks have holes so that they can be fixed to the ground.
  • Water level sensor in each tank.
  • Additional set of accessories for connecting 1 washing machine.

3 tanks (6 m maximum distance to the washing machines), includes:
- 25 meters of pipe
- 25 meters of electric hose
- 6 pcs T-connector
- 12 clamps

WASHING MACHINES
35/45 kg > up to 8 machines
60/80 kg > up to 4 machines
100/120 kg > up to 3 machines

IMPORTANT
When ordering a washing machine, it must be with the "Ready for tanks/tanks" option, so that the washing machine comes from the factory with installed parts and electronic boards, which will facilitate its installation and integration with the tanks.

Model

Code

CAPACITY PER TANKS (LITRES)

VALID FOR WASHERS

DIMENSIONS (MM)

WREC-1000

19102705

1000

LA/LN-35/45/60/80 and LA-100/120 LBS-27/35/50/70/100

2.123x1.355x699

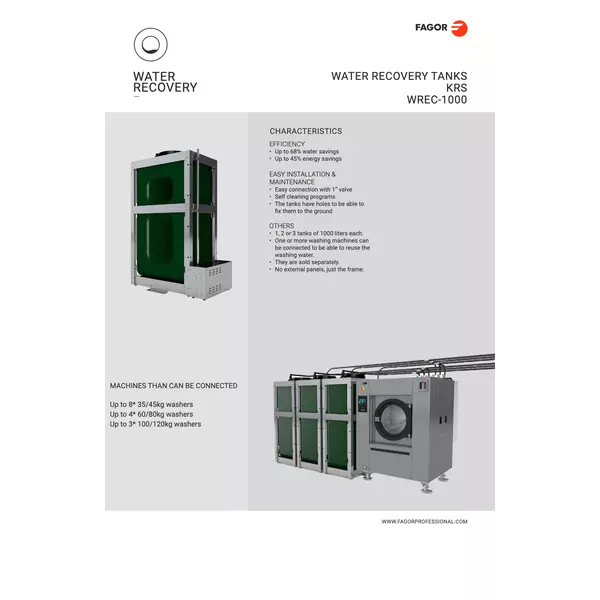

Specs (WREC-1000.pdf, 437 Kb) [Download]
