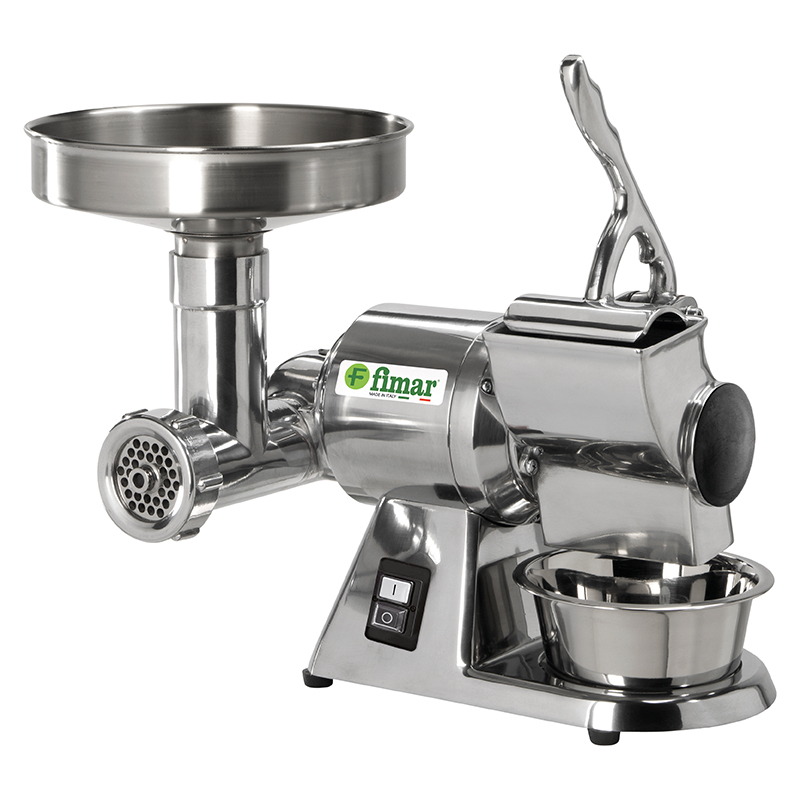

Fimar AB8D – Compact Combined Meat Mincer & Grater, 20–50 kg/h
The Fimar AB8D is a compact professional machine that combines a meat mincer and a grater in one efficient unit. Designed for small shops, cafés, pizzerias and kitchens with limited space, it delivers reliable performance at low to medium production levels. With a 0.37 kW motor, the AB8D offers a mincing capacity of 20–50 kg/h and a grating capacity of 20 kg/h, making it ideal for daily food preparation.
The machine features a polished aluminium body and stainless steel hopper, ensuring durability, hygiene and easy cleaning. The grinding unit is made of aluminium, equipped with a Ø52 mm feed inlet, an Enterprise system with a stainless steel plate (Ø6 mm) and a self‑sharpening stainless steel knife for consistent cutting results.
The grater section includes a polished aluminium inlet (105×65 mm), a stainless steel roller, a lower protection grid, and a microswitch on the pusher lever, ensuring safe operation even in busy environments.
With a net weight of only 11 kg and compact dimensions of 430 × 270 × 360–420 mm, the AB8D is one of the most space‑efficient combined machines in the Fimar range.
Key Features of Fimar AB8D
-
Combined meat mincer + grater
-
Stainless steel body and hopper
-
Aluminium grinding unit
-
Ø52 mm feed inlet
-
Enterprise system with 6 mm stainless steel plate
-
Self‑sharpening stainless steel knife
-
Grater inlet 105×65 mm (polished aluminium)
-
Stainless steel grater roller
-
Safety features: lower protection grid, microswitch on pusher
-
Mincing output: 20–50 kg/h
-
Grating output: 20 kg/h
-
Power supply: 230V/1N/50Hz
-
Lightweight: 11 kg

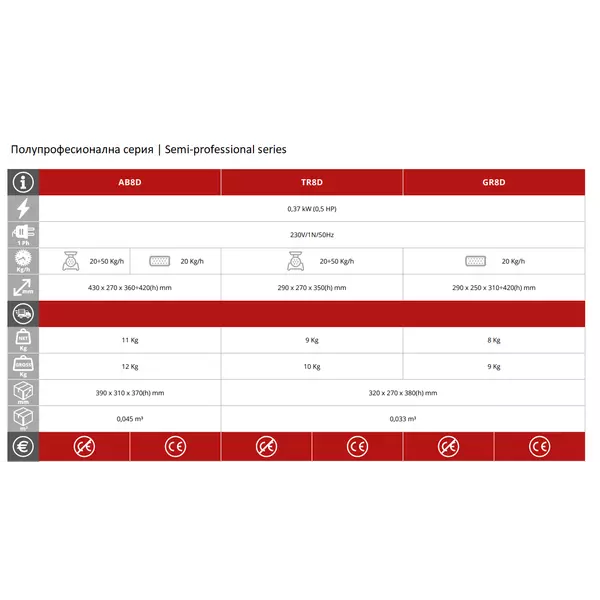

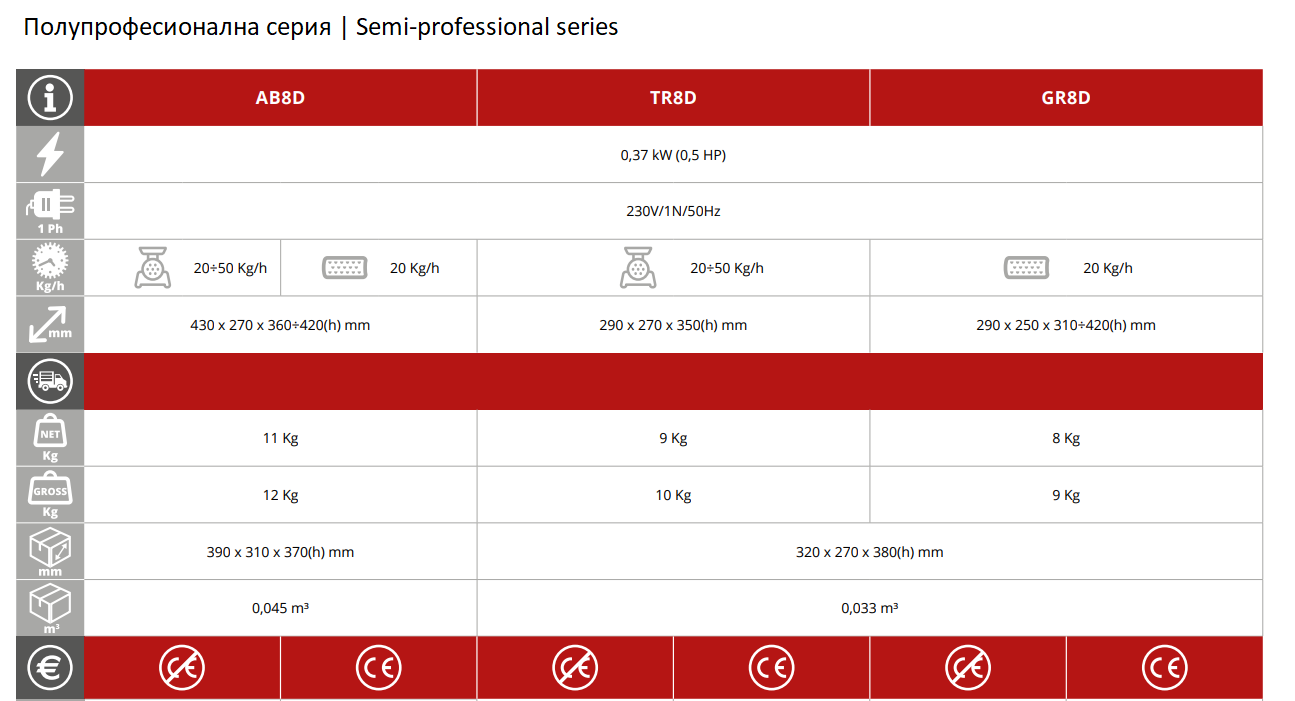

Technical Specifications – Fimar AB8D
| Power | 0.37 kW |
| Power supply | 230V/1N/50Hz |
| Mincing output | 20–50 kg/h |
| Grating output | 20 kg/h |
| Meat inlet | Ø52 mm |
| Dimensions | 430 × 270 × 360–420 mm |
| Net weight | 11 kg |
| Body material | Polished aluminium |
| Grinding unit | Aluminium body, stainless stell hoper and Enterprise system (SS) |
| Grater inlet | 105 × 65 mm |
| Roller material | Stainless |
Suitable For
-
Small butcher shops
-
Cafés and snack bars
-
Pizzerias
-
Small restaurants
-
Home‑style kitchens with professional needs
-
Businesses requiring a compact 2‑in‑1 solution
If you need a compact and affordable combined meat mincer and grater for light to medium workloads, the Fimar AB8D is the ideal solution. Contact us for a personalised offer.
