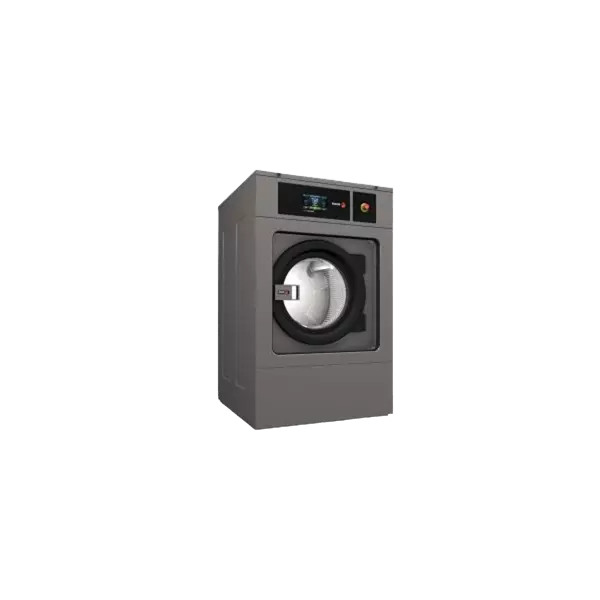

High-speed washing machine with low to medium capacity, volume 280 liters. The model can be heated by an electric heating system of armored stainless steel heating elements, by a hot water inlet from the mains or a steam function produced by external generators, pressure 4 kg/cm2.
FEATURES
- User-friendly, with fully programmable TP2 control processor and 7” Touch display.
- USB connection. Free PC software, traceability and data analysis thanks to IoT.
- FagorKonnect - IOT (Internet of Things) standard connectivity - technology that allows the machine's operating parameters (load, temperature, oil quality, etc.) to be accessed online, monitored, analyzed and subsequently diagnosed.
- 37 languages.
- 8 dosing signals as standard.
G FACTOR
- G-FACTOR 450.
EFFICIENCY
- Intelligent consumption.
- Optimal loading.
- Compatible with water saving tanks: KRS.
- Low water consumption.
VERSATILITY
- Make to order: customization.
- OPL < > COIN.
- Electric < > Hot water.
- Drain valve < > Pump.
- WET CLEANING functions are built in, with configurable water levels, wash speed and spin speed.
CONNECTIVITY
- IoT - FagorKonnect. (Internet of Things)
- Remote technical maintenance.
- Laundry manager: OPL and self-service.
- Remote payment.
ERGONOMICS
- Maximum door diameters: Ø460.
- Easy door opening/closing system, locking.
MAINTENANCE
- Control panel: easy and ergonomic access.
- Telemetry as standard: the entire washing process (temperature, water levels) is stored in the washing machine's memory and can be transferred to a computer device via USB or remotely with FagorKonnect.
OTHER
- External panel - gray.
- Drum and detergent dispenser made of AISI 304 stainless steel.
- Detergent dispenser with 4 compartments.
- Drum balancing system, controlled by a frequency drive (standard 50-60 Hz) - reduces electricity consumption.
- “LOADING AID” system regulates the amount of water supplied and the spin speed when loading different amounts of laundry.
- In accordance with CB and WRAS regulations.
SPECIFICATIONS LA-28 TP2 E /ELECTRIC/
- Load capacity 1:9/1:10 - 31/28kg.
- Volume - 280l.
- Door diameter 460mm., dimensions: 865/560mm.
- Drum dimensions: diameter 770mm, depth: 585mm.
- Drum rotation speed during washing/spin - 45/1,024 rpm.
- G factor 450.
- Noise level - <70dB
OPTIONS
DQ-2 Dosing pump kit.
Additional dosing pump DB-1.
Double drain.
Normally closed valve.
WaterFULL FLOW water recirculation.
Leveling feet.
Automatic laundry weighing: sensor system located on the feet of the machine for automatic weighing of the amount of laundry (Includes a set with 6 additional dosing signals).
Card with 6 additional dosing signals: up to 14 signals in total.
Silicone seal.
Reversible door opening.
Steam kit for transforming E or HW heating machines into Steam version.
Plinth for leveling all machines from above.
Plinth for aligning the door base at 850 mm.
Mop base with inox/skinplate drawer.
Stainless steel outer casing.
Stainless steel front panel.
Voltage options for electric models: 440V III 50/60 Hz Without neutral.
Coin/token set.
Automatic door unlocking set.
|
Model |
Code |
Heating |
El power kW |
Voltage |
|
LA-28 TP2 E |
19099357 (70113) |
electricity |
19,2 |
400V III +N |
|
LA-28 TP2 HW |
19099359 |
hot water |
4 |
single phase |
|
LA-28 TP2 S |
19099370 (70141) |
steam |
4 |
single phase |
