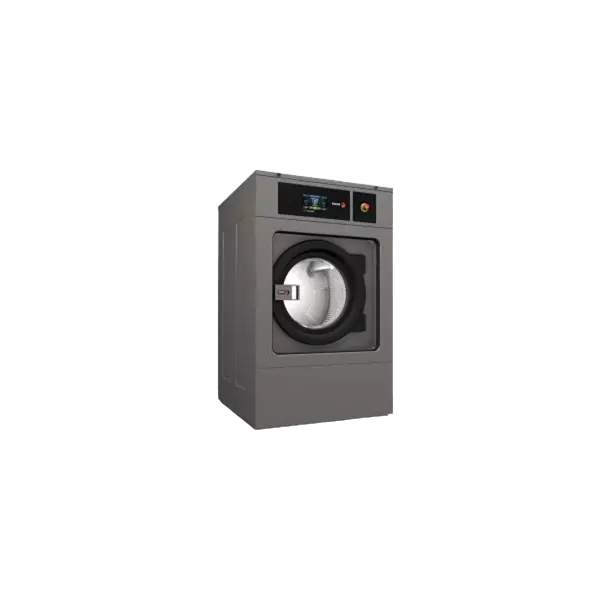

High-speed washing machine with low to medium capacity, volume 220 liters. The model can be heated by an electric heating system of armored stainless steel heating elements, by a hot water inlet from the mains or a steam function produced by external generators, pressure 4 kg/cm2.
GENERAL FEATURES FOR LA-18/22 TP2 MODELS
- User-friendly, with fully programmable TP2 control processor and 7” Touch display.
- USB connection. Free PC software, traceability and data analysis thanks to IoT.
- FagorKonnect - IOT (Internet of Things) standard connectivity - technology that allows the machine's operating parameters (load, temperature, oil quality, etc.) to be accessed online, monitored, analyzed and subsequently diagnosed.
- 37 languages.
- 8 dosing signals as standard.
G FACTOR
- G-FACTOR 450-500.
EFFICIENCY
- Intelligent consumption.
- Optimal loading.

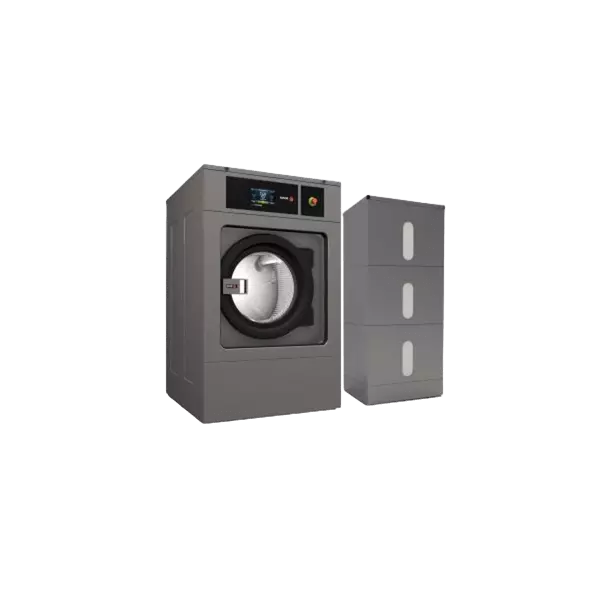

- Compatible with water recovery tanks: KRS.
- Low water consumption.
VERSATILITY
- Make to order: customization.
- OPL < > COIN.
- Electric < > Hot water.
- Drain valve < > Pump.
- Wet cleaning functions, designed for delicate washing, regulates water levels and spin.
CONNECTIVITY
- IoT - FagorKonnect standard.
- Remote technical maintenance.
- Laundry management: OPL and COIN.
- Remote payment.
ERGONOMICS
- Maximum door diameters: Ø460.
- Easy door opening/closing and locking system.
MAINTENANCE
- Control panel: easy and ergonomic access.
- Technical menu: statistics for technicians and maintenance with external console (with console option)
OTHER
- Gray outer casing.
- AISI 304 stainless steel drum and detergent dispenser.
- 4-compartment detergent dispenser.
- Drum balancing system, controlled by a frequency drive (standard 50-60 Hz) - reduces electricity consumption.
- “LOADING AID” system, regulates the amount of water supply and spin speed when loading different amounts of laundry.
- In accordance with CB and WRAS regulations
- High-speed washing machines with a suspended drum.
MODEL SPECIFICATIONS LA-22 TP2 E (ELECTRIC)
- Load capacity 1:9/1:10 - 22/25kg.
- Volume - 220l.
- Door diameter 460mm., dimensions: 765/450mm.
- Drum dimensions: diameter 700mm, depth: 560mm.
- Drum rotation speed during washing/draining - 47/1,071 rpm.
- G factor 500.
- Noise level - <70dB
OPTIONS
- DQ-2 Dosing pump kit.
- Additional dosing pump DB-1.
- Double drain.
- Normally closed valve.
- Water FULL FLOW water recirculation.
- Leveling feet.
- Automatic weight: sensor for automatic weighing of the laundry (Includes a set with 6 additional dosing signals).
- Relay card with 6 additional dosing signals: up to 14 signals.
- Silicone seal.
- Reversible door opening.
- Steam kit to transform E or HW heated machine into Steam version.
- Plinth for leveling all machines from above.
- Plinth for aligning the base of the door at 850 mm).
- Mop plinth with inox/skinplate drawer.
- Stainless steel outer casing.
- Stainless steel front panel.
- Washing machines with different voltages: 440V III 50/60 Hz Without neutral.
- Coin/token set.
- Automatic door unlocking set.
|
Model |
Code |
Heating |
El power kW |
Voltage |
|
LA-22 TP2 E |
19098594 (70111) |
electric |
12,75 |
3 PH |
|
LA-22 TP2 HW |
19098596 |
hot water |
2,2 |
1 PH |
|
LA-22 TP2 S |
19099356 |
steam |
2,2 |
1 PH |
