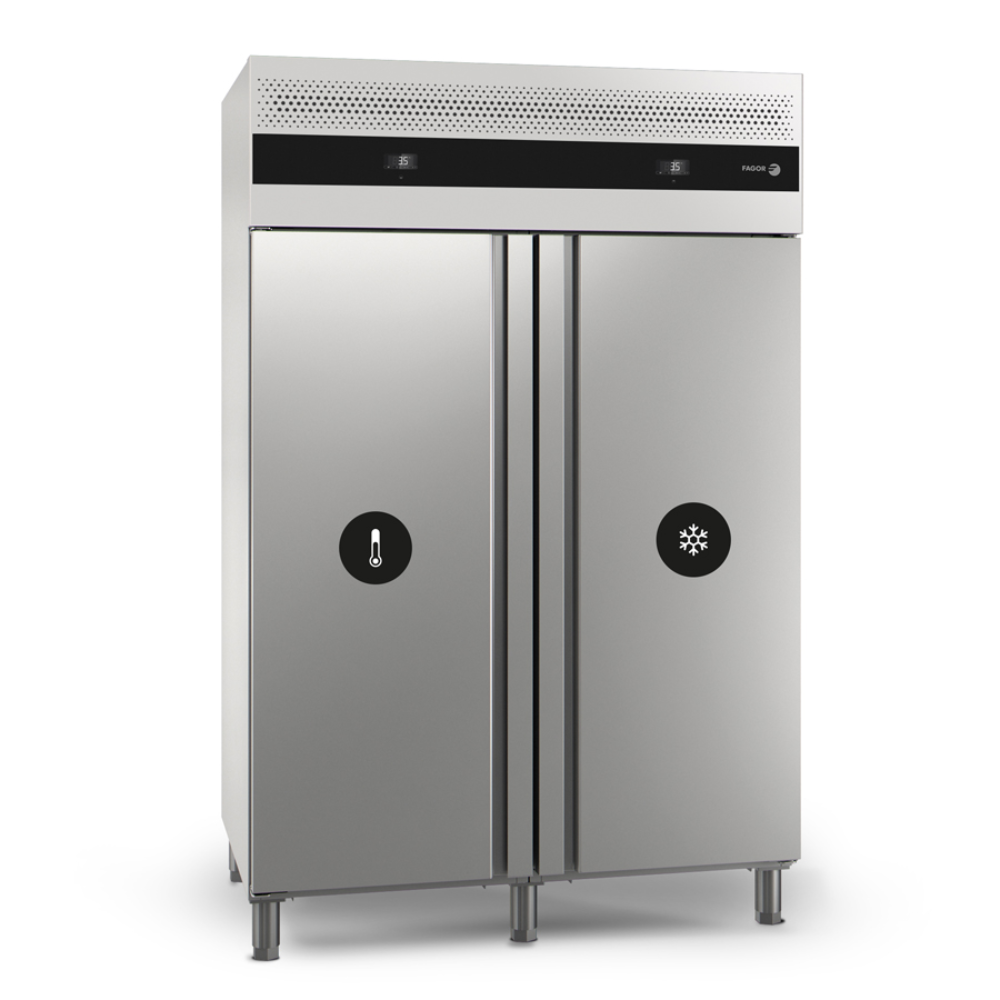

Refrigerator with freezer GN 2/1 1400L CONCEPT

Take advantage of the convenience of purchasing appliances on installment plans or financing the complete equipment of your professional kitchen or laundry facility, without the need to pay the full amount upfront! tbitbi Leasing inquiry
0 +8ºC / -18º -22ºC
Fagor
19089470
Contact us for a price

The prices listed in the online store are preferential and apply only to orders placed through the website.

Need help?02/862 55 66

Professional combined refrigerator Concept gastronorm GN 2/1 with double body and 2 doors. Refrigerator compartment: 0 °C, +8 °C and Freezer compartment: -18 °C, -22 °C.

DESCRIPTION:

  • Interior made of AISI-304 stainless steel, exterior in food-grade stainless steel.
  • 60 mm insulation, built-in independent internal modules with their respective refrigeration units and electronic control.
  • Intuitive, digital display for electronic control with ECO energy-saving function to ensure optimal control over product storage.
  • Stainless steel doors with ergonomic, full-length, sturdy, perfectly integrated handle that ensures practical opening and avoids the accumulation of dust and dirt.
  • Removable magnetic door seal to maintain maximum hygiene.
  • Hinged doors with automatic return for perfect closing, minimizing temperature increases. The doors have a 120° static position and close automatically at less than 90°.
  • Rotating service panel with better access, which facilitates servicing, thus increasing the useful life of the equipment.
  • Automatic evaporation of defrosted water.
  • Internal forced draft cooling system and low-consumption electronic components to guarantee optimal efficiency and performance of the equipment.
  • Optimal air circulation system that guarantees balanced and constant distribution throughout the equipment so that the temperature remains uniform. Helps preserve food for longer.
  • Height-adjustable stainless steel feet. The height of the feet can be adjusted individually (130 mm - 200 mm) to allow convenient cleaning.
  • Low-energy LED lighting, located vertically inside the refrigerator.
  • The interior has stamped edges to reduce potential dirt accumulation and a built-in drain for draining liquids inside the module.
  • Equipped with removable and height-adjustable 3 x GN 2/1 racks with epoxy coating and a maximum load capacity of up to 40 kg per door - 6 in total.
  • Suitable for 1 x GN2/1 or 2 x GN1/1 gastronorm food containers.
  • Mixed refrigerator and freezer cabinet. Two independent modules with their respective refrigeration units and electronic control.
  • Refrigerator module: - With forced cooling (operating temperature: 0 °C, +8 °C), refrigerant R-600a and defrosting by stopping the compressor.
  • Freezer module: - With forced draft evaporator (operating temperature: -18 °C, -22 °C), refrigerant R290 and defrosting by electric. heating element, removing ice accumulated in the evaporator.
  • Volume: 1220l.
  • Noise level: 62.00 dB
  • Climate class: 4

OPTIONS:

  • Stainless steel back
  • Wheel set (factory installation)
  • Door frame resistance
  • Locks
  • Pedal
Model:
CUD-22G/M
HACCP:
  • No
Voltage (V/Ph/Hz):
230/1N/50
Power
:
0.36kW
Dimensions:
1318 x 842 x 2040 mm
Net weight:
CUD-22G/M kg
Temperature:
0 +8ºC / -18º -22ºC
Climate class:
4
Energy class:
C
Gas:
  • R-600a
  • R290
Cooling type:
Forced circulation
Defrost type:
Compressor off
Electronic control:
Capacitive 3"
Gross volume:
1220 L
Isolation:
60 mm
Size of shelves:
  • GN 2/1
Nº of shelves
:
23

Specs (CUD-22G_M_19089470.pdf, 846 Kb) [Download]
