Refrigerated shelves with an operating temperature of +2ºC +8°C and a depth of 150 mm, for different sizes and numbers of gastronorm containers.

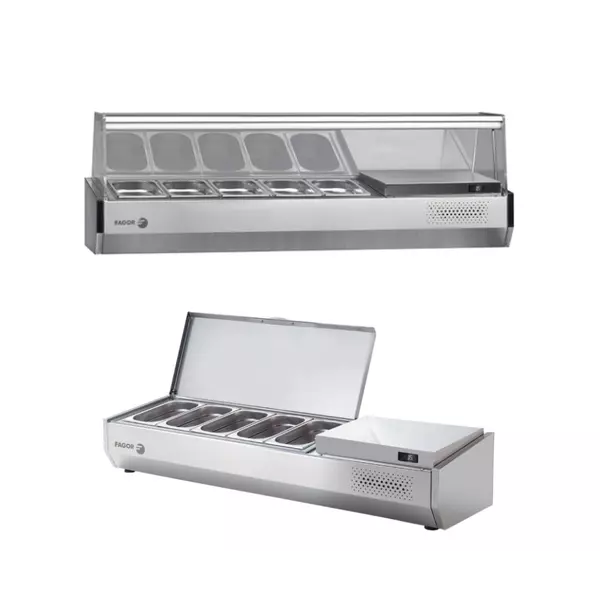

Two versions available:
- Exterior made of tempered glass and anodized aluminum profiles.
- Hinged stainless steel lid with operating position at 90ºC
General characteristics
- Made of high-quality stainless steel for intensive professional applications.
- Freon-free polyurethane insulation, high density (40 kg/m³), injected under high pressure.
- Intuitive digital control allows temperature parameters to be adjusted easily and quickly.
- Refrigerated shelves are available in a wide variety of lengths.
- Static cooling system. All-copper cooling system located at the bottom of the display case.
- Water drainage specially designed for optimal hygiene and maintenance.
Specification:
- Temperature: +2ºC +8°C
- Refrigerant: R-600a
- Power: 0.169 kW
- Annual energy consumption: 0.102 kW/h
- Depth: 150 mm
|
Model |
Code |
Capacity GN |
Dimensions mm |
For refrigeration table: |
|
Exterior made of tempered glass and anodized aluminum profiles. |
||||
|
SP-2B |
19089674 |
6 x GN1/4 |
1496 x 336 x 450 |
CCP-2B GR |
|
SP-3B |
19089675 |
9 x GN1/4 |
2019 x 336 x 450 |
CCP-3B GR + CCP-2B GRV D4 & D7 |
|
SP-4B |
19096958 |
12 x GN1/4 |
2542 x 336 x 450 |
CCP-4B GR + CCP-3B GR D4 & D7 |
|
SP-2B GN 1/3 |
19096956 |
6 x GN1/3 |
1492 x 396 x 450 |
CCP-2B GR |
|
SP-3B GN 1/3 |
19096957 |
9 x GN1/3 |
2017 x 396 x 450 |
CCP-3B GR + CCP-2B GR D4 & D7 |
|
SP-4B GN 1/3 |
19096959 |
12 x GN1/3 |
2542 x 396 x 450 |
CCP-4B GR + CCP-3B GR D4 & D7 |
|
Hinged stainless steel lid with working position at 90ºC |
||||
|
SPT-2B |
19089679 |
5 x GN1/4 |
1496 x 336 x 250 |
CCP-2B GR |
|
SPT-3B |
19089680 |
8 x GN1/4 |
2019 x 336 x 250 |
CCP-3B GR + CCP-2B GRV D4 & D7 |
|
SPT-4B |
19089682 |
10 x GN1/4 |
2542 x 336 x 250 |
CCP-4B GR + CCP-3B GR D4 & D7 |
|
SPT-2B GN 1/3 |
19096980 |
5 x GN1/3 |
1492 x 396 x 450 |
CCP-2B GR |
|
SPT-3B GN 1/3 |
19096981 |
8 x GN1/3 |
2017 x 396 x 450 |
CCP-3B GR + CCP-2B GR D4 & D7 |
|
SPT-4B GN 1/3 |
19096983 |
10 x GN1/3 |
2542 x 396 x 450 |
CCP-4B GR + CCP-3B GR D4 & D7 |
