Refrigerated Counter 700 GN 1/1 with drawers CONCEPT

Medium temperature (0ºC +8 ºC) refrigerated counter Concept gastronorm GN 1/1 with a depth of 700 mm. The models can be configured according to the number of doors and the number of drawers. In place of each door there can be 2 drawers (1/2 + 1/2).

• Each door (D) is equipped with 1 GN 1/1 grid and 2 sets of height-adjustable tray slides (maximum load capacity up to 40 kg.).
• The drawers (H) are made of stainless steel with a perforated plate on the bottom and telescopic sliding guides, capable of full retraction, for saving work surface.

Description

• Interior made of AISI-304 stainless steel, exterior coating in food-grade stainless steel.
• 50 mm high-density polyurethane insulation (40 kg/m³), CFC-free (chlorofluorocarbons, climate-friendly).
• Durable stainless steel worktop with 100mm high lid to prevent spills behind the worktop.

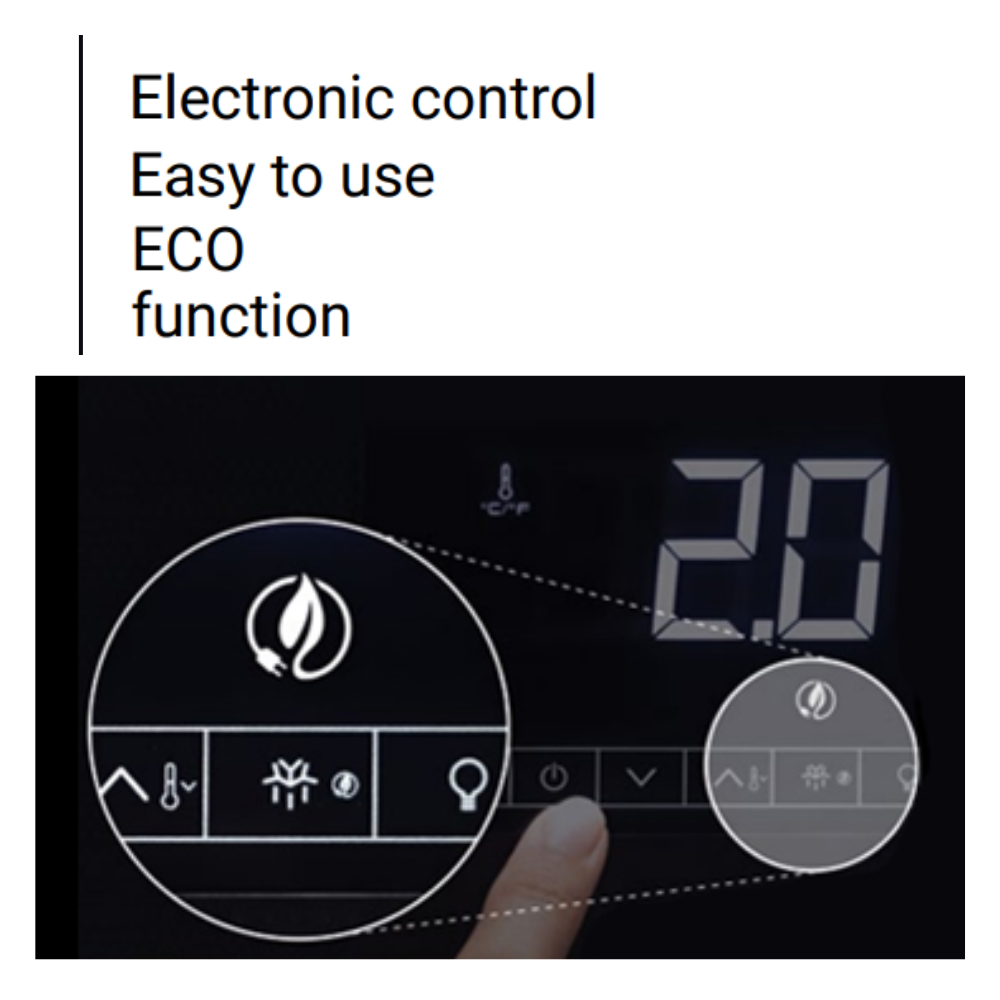

• Intuitive, 3" digital display for electronic control with ECO function for energy saving to ensure optimal control of product storage.

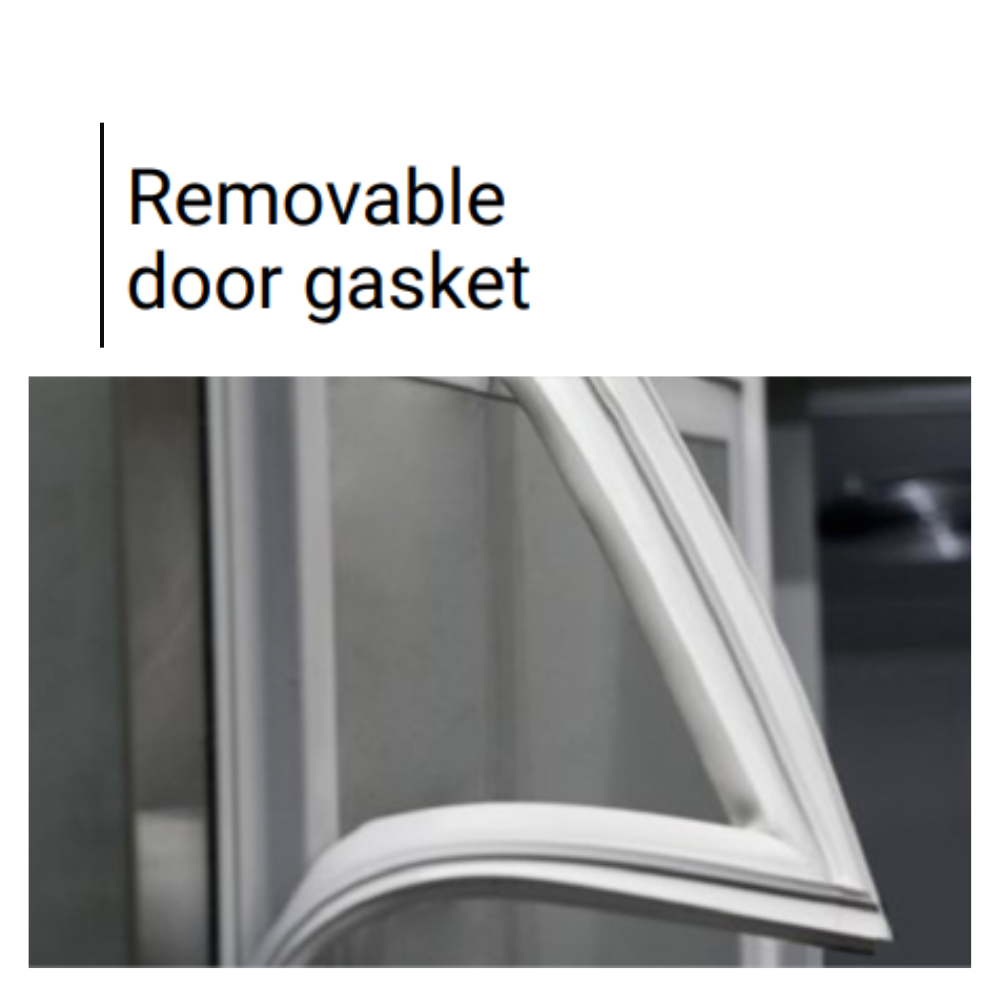

• Removable magnetic door seal to maintain maximum hygiene and maintain insulation properties.
• Hinged doors and automatic return for perfect closing, minimizing temperature rise. The doors have a 120° position and close automatically at less than 90°.

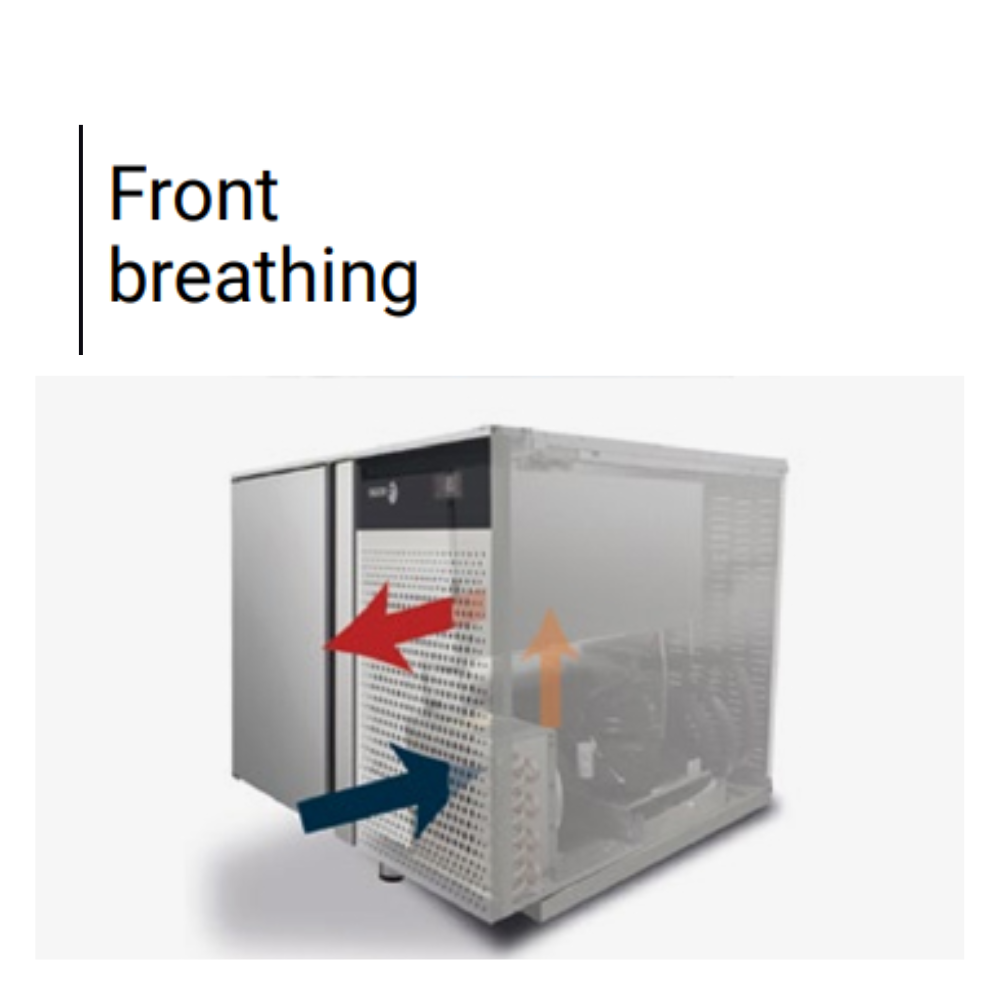

• Rotating front panel with easy service access and ventilation grille design, allowing the machine to be built-in without compromising performance.
• Internally designed forced draft cooling system and low consumption electronic components to ensure optimal efficiency and performance of the equipment.
• Optimal air circulation system that guarantees balanced and constant distribution throughout the equipment so that the temperature remains uniform. Helps preserve food for longer.

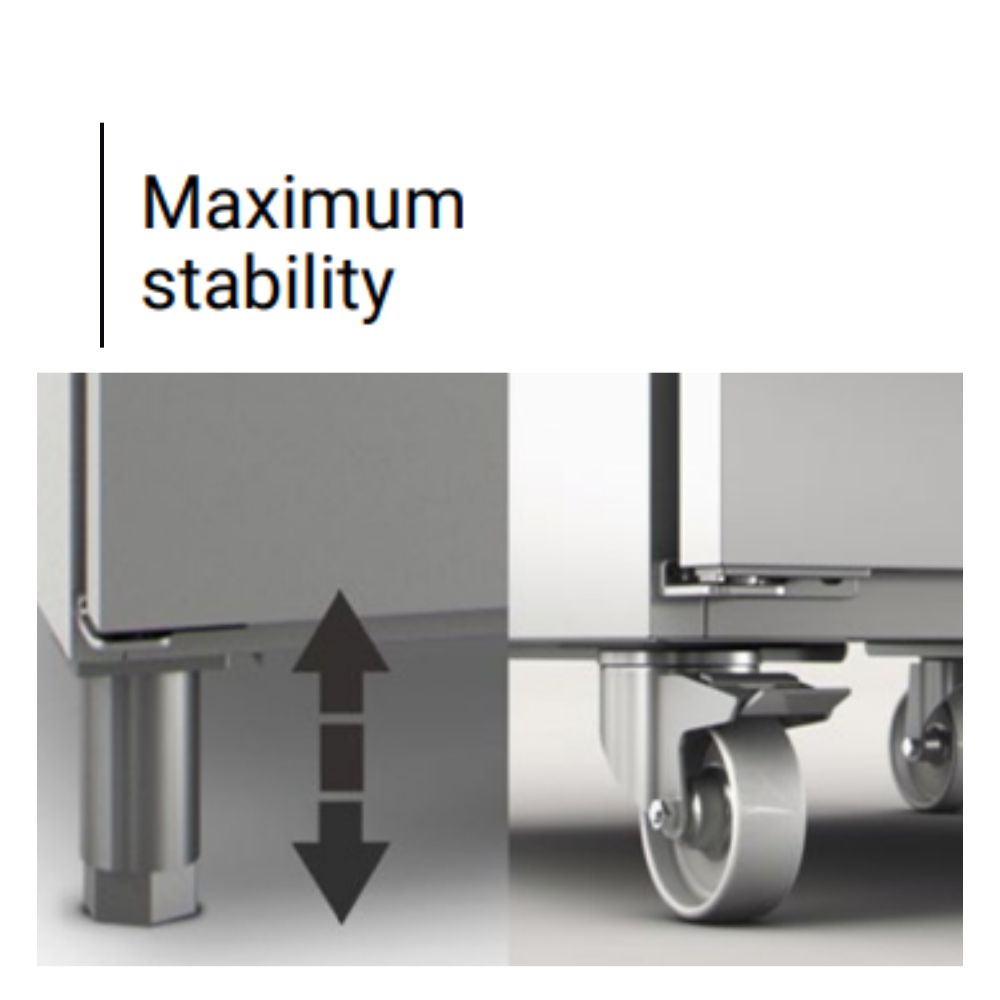

• Height-adjustable stainless steel legs. The height of the legs can be adjusted individually (130 mm - 200 mm) to allow convenient cleaning.
• Automatic evaporation of defrosted water.
• Internal parts with stamped edges, allowing easier cleaning and reducing potential contamination.
• Built-in drain to get rid of waste liquid inside the modules.
• Removable and height-adjustable grids - GN 1/1 compatible, with epoxy coating and maximum load capacity of up to 40 kg.

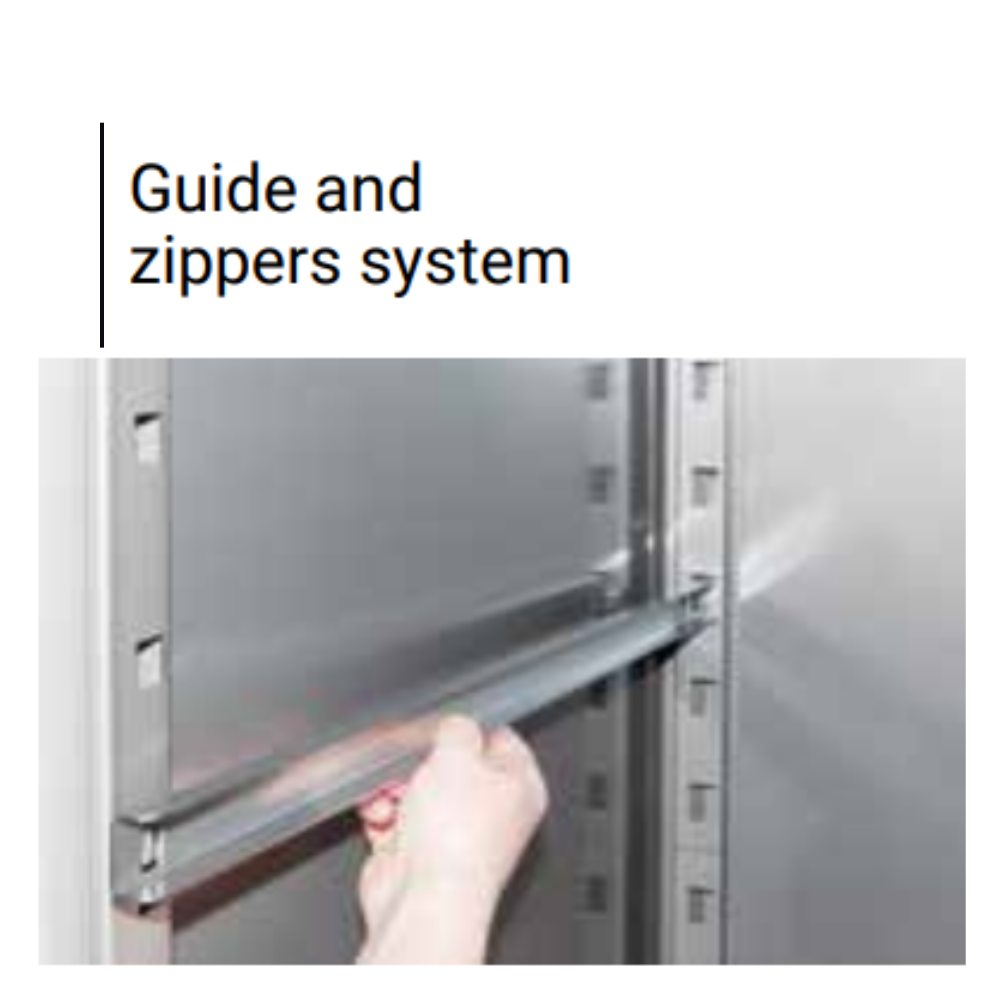

• The equipment includes 1 GN 1/1 grid and 2 height-adjustable sets of slides (562mm) for trays for each door.

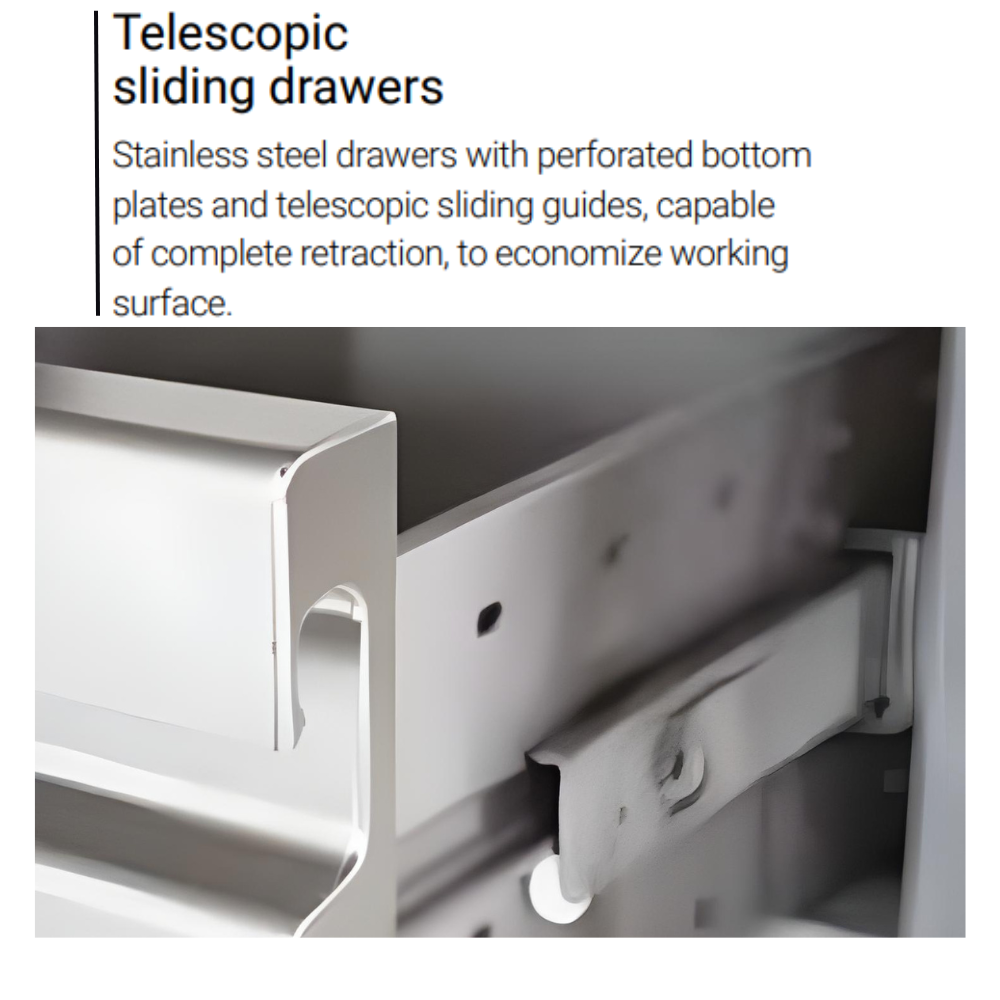

• Stainless steel drawers with perforated bottom plates and telescopic sliding guides, with the possibility of full retraction, allowing saving of the work surface.
• Defrosting by stopping the compressor.

Specification:

Configurations:

Options

• 60 Hz
• Stainless steel base
• Wheel set (factory installed)
• Door frame heating
• Granite top
• Lock
• Left-side refrigerator module
• No back (splash guard)
• Panoramic door opening
• Drawers
