Automatic tilting rectangular boiling pans (200L) with mixer and PLC monitor - MRBI-200 M

Възползвайте се от удобството да закупите уреди на изплащане или да финансирате на вноски цялостното оборудване на вашата професионална кухня или перално стопанство. С нашите партньори ще Ви предложим най-добрите условия за изпълнението на вашия проект, без да е необходимо да плащате цялата сума предварително. tbitbi Запитване за лизинг
MRBIG-200 M
SteamElectricGas
Fagor
19084239
Contact us for a price
Need help?02/862 55 66

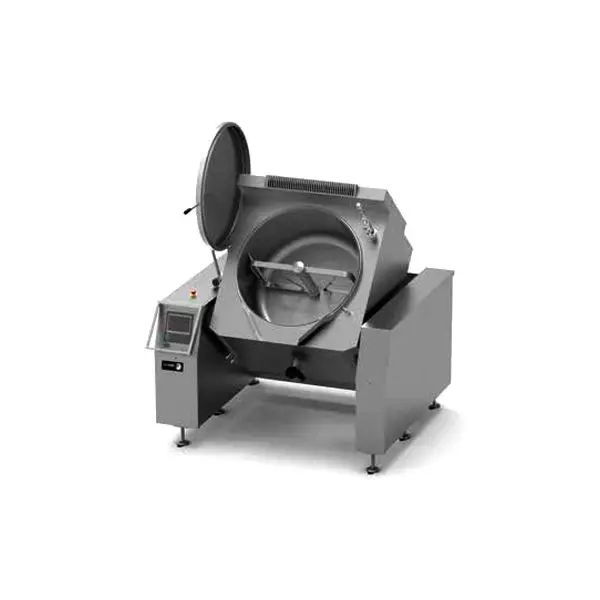

Automatic tilting rectangular boiling pans with mixer and PLC monitor, capacity 200 liters.

  • Tank with bottom in AISI-316 stainless steel with a thickness between 20/10 and 40/10 and double wall in AISI-304 stainless steel with a thickness between 20/10 and 25/10.
  • Tank drain hole with removable filter (optional).
  • Front drain cock with insulated athermal handle (optional).
  • Lid in AISI-304 stainless steel with a thickness of 15/10, equipped with a steel closing mechanism with balancing springs and athermal handle.
  • Pressure gauge to control the pressure inside the double wall.
  • Manual exhaust valve to reduce the pressure produced in the double wall during the heating process.
  • Adjustable chrome-plated bronze mixer for hot and cold water.
  • Safety valve set at 0.5 bar.
  • Supporting structure in stainless steel with a thickness of 40/10 mounted on steel legs with adjustable height and a bracket for attaching to the floor.
  • Outer walls of the container in fine satin-finished AISI-304 steel with a thickness of 10/10.
  • Tabletop in stainless steel AISI-304 with a thickness of 15/10.
  • Removable mixer in stainless steel AISI-316 with adjustable rotation speed between 7 and 28 g/m with a force of up to 386 N m.
  • Possibility of reversing the direction of rotation of the mixer via an electronic switch.
  • The mixer arms are in stainless steel and the blades are Teflon ceramic, which allows easy removal of food residues.

PLC monitor:

  • Allows up to 100 modifiable cooking programs that can be managed and customized, even during cooking.
  • Equipped with touch screen, controls and operating manual, water load sensor, mixer tilt and movement.
  • Equipped with audible warning indicator (yellow light) for correct operation and alarm (red light) in case of malfunction.
  • All settings are personalized and can be viewed and changed even during cooking (name, wait, water filling, time range, temperature, mixing speed, etc.).

HEATING:

GAS - INDIRECT MODELS:

  • Manual piezoelectric ignition and pilot flame.
  • Heating with tubular heaters in high-performance AISI-304 stainless steel.
  • Smoke exhaust grille.
  • Set of nozzles for different types of gas.
  • Water level control in the double wall with tap and automatic water filling option.
  • Pressure control in the double wall, safety valve set at 0.5 bar, pressure gauge.

ELECTRIC INDIRECT MODELS:

  • Heated by a system of electric heating elements.
  • Safety thermostat that ensures that the machine does not operate in case of overheating or insufficient water.
  • Temperature control (50 - 120 °C).

INDIRECT STEAM MODELS:

  • Heated by steam (from an additional connection) through a valve that allows the steam to be gradually added to the double wall of the vessel.
  • Indirect heating equipment includes: pressure control in the double wall by a safety valve set at 0.5 bar, manual vacuum valve and pressure gauge.

HEATING

MODEL

CAT. N:



POWER kW

Indirectly heated gas

MRBIG-200 M

19084239

35.75

Indirectly heated electric

MRBIE-200 M

19084242

24.75

Indirectly heated steam

MRBIV-200 M

19084245

0.75

Model:
MRBIG-200 M
Voltage (V/Ph/Hz):
220-240/380-400/3N/ 50-60
Power supply:
  • Steam
  • Electric
  • Gas
Power:
35.75kW
Sizes:
1674x1450x1140 mm
Net weight:
620 kg

Парни казани

Power supply :
Gas

Electric - MRBIE-200_M (MRBIE-200_M_19084242.pdf, 1,022 Kb) [Download]

Gas - MRBIG-200_M (MRBIG-200_M_19084239.pdf, 1,043 Kb) [Download]

Steam - MRBIV-200_M (MRBIV-200_M_19084245.pdf, 1,063 Kb) [Download]
